CNC Wood Turning Lathe
Wood
Wood
Turning Lathe with Carving

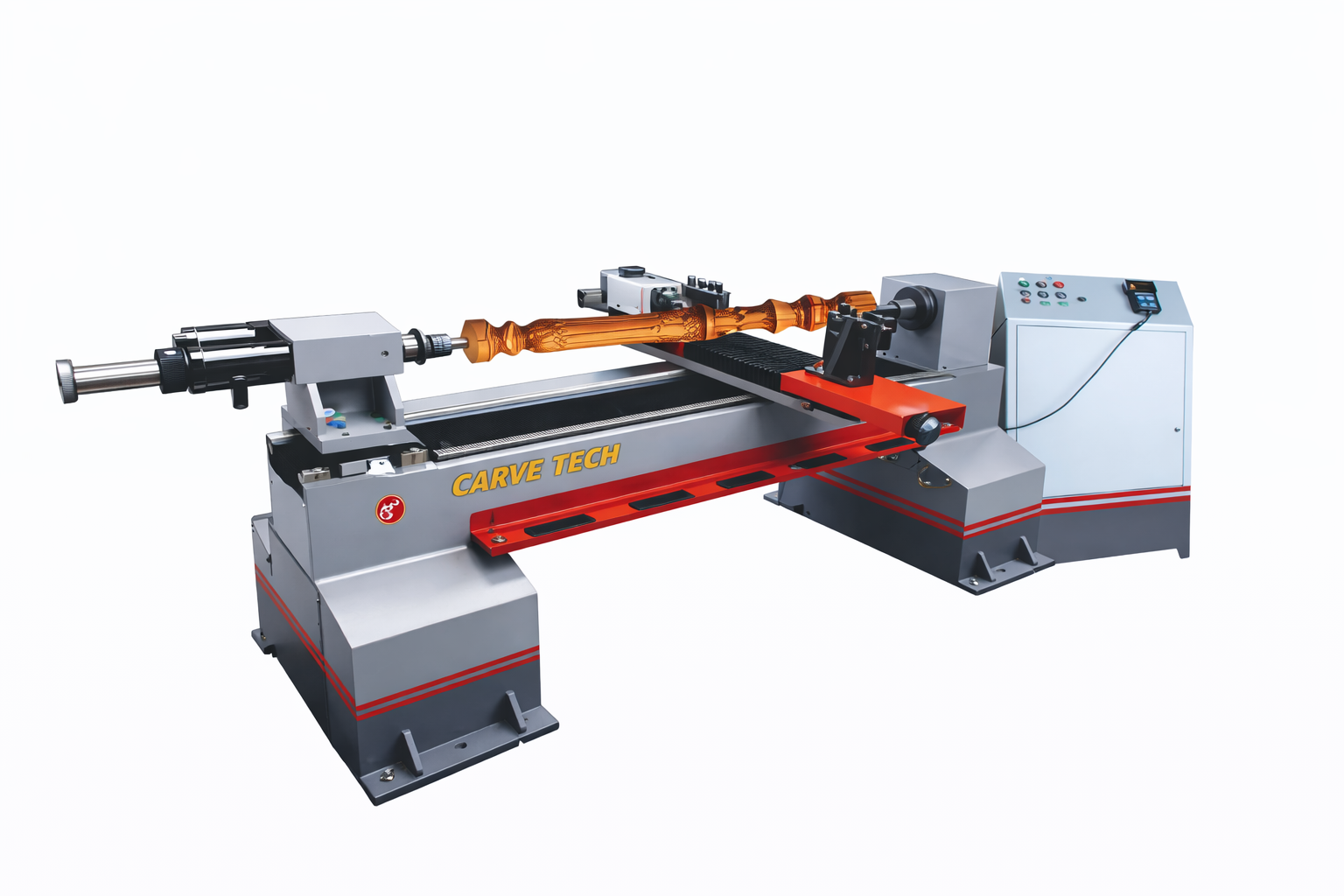

CarveTech Wood Turning Lathe with Carving is designed for CNC turning and detailed carving of long cylindrical wooden workpieces. It combines rotary turning with carving capability for producing both functional and decorative profiles with consistent results.
Technical Specifications
| Parameter | Model 1015 | Model 1520 |
|---|---|---|
| Operating System | NK105 G3 / RichAuto | NK105 G3 / RichAuto |
| Max. Turning Length | 1000 mm | 1500 mm |
| Max. Turning Diameter | 150 mm | 200 mm |
| Rotary Axis Working Area | 1000 mm × 150 mm | 1500 mm × 180 mm |
| Accuracy | < 0.05 mm | < 0.05 mm |
| Spindle Power | 5 kW | 5 kW |
| Main Motor Power | 3 HP | 3 HP |
| Power Requirement | AC 380 V, 50 / 60 Hz | AC 380 V, 50 / 60 Hz |
| Air Pressure | 6–8 Bar | 6–8 Bar |
| Machine Weight | Approx. 700 kg | Approx. 1000 kg |
| CARVING PARAMETER | ||
| Spindle Power | 3.0 kW Air Cooled Spindle | |
| Job Size | Customized |
Ideal Applications
Furniture Legs
Wooden Balusters
Decorative Columns
Wooden Spindles
Architectural Pillars
Spiral & Fluted Components
Decorative Turned Parts
Table & Chair Components
Custom Wooden Profiles

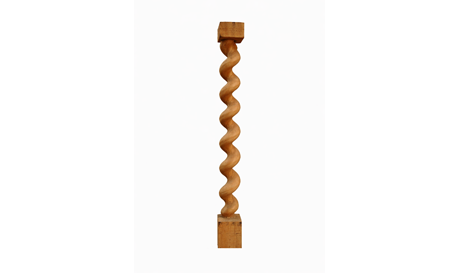

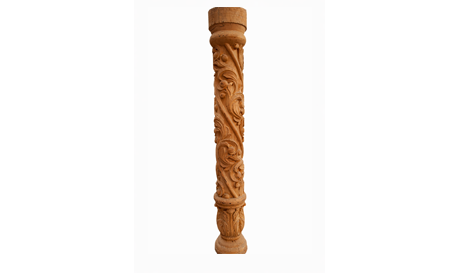

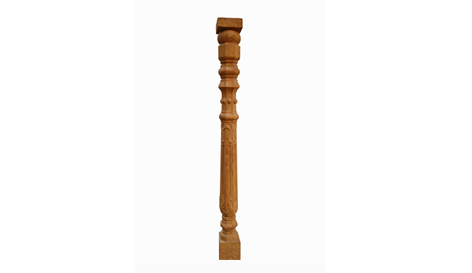

Sample Products
Turning Lathe with Carving
.
Turning Lathe with Carving
.
Turning Lathe with Carving
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech Wood Turning Lathe with Carving. Get in touch with our experts today.
