Blue
Light 3D Scanner

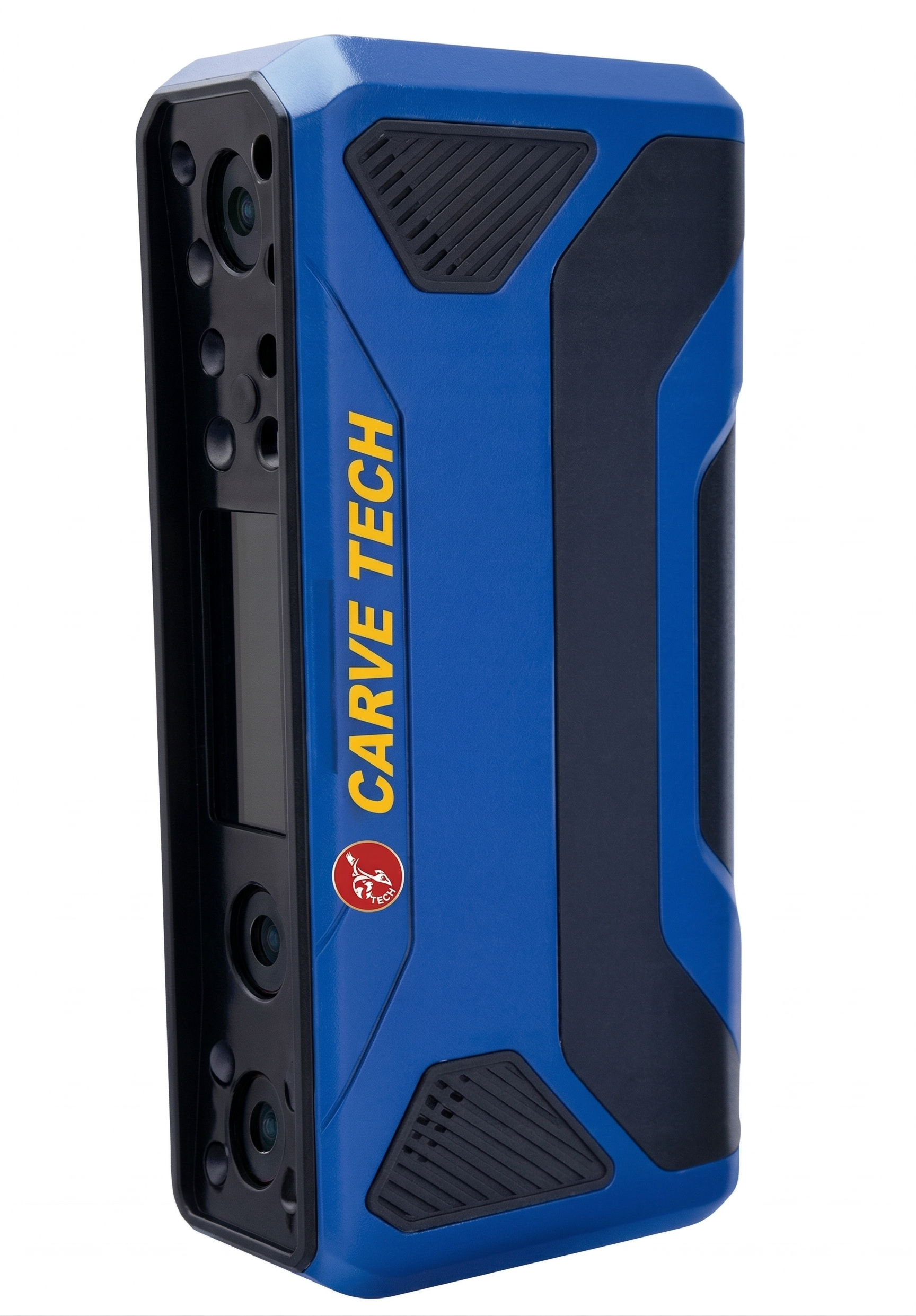

Carve Tech Blue Light Handheld 3D Scanner combines high-speed scanning with accurate 3D data capture for demanding industrial applications. Featuring a monochromatic 500 nm blue laser, scanning speeds of up to 20 FPS, and up to 300,000 points per frame, it delivers detailed and consistent results. With multiple alignment modes, outdoor scanning support, and a compact 650 g handheld design, it is suitable for inspection, reverse engineering, measurement, and 3D data acquisition.
Technical Specifications
| Parameter | Specification |
|---|---|
Light Source |
One-wavelength Blue Laser |
Laser Technology |
Phase Shift EEL (Edge-Emitting Laser) |
Laser Safety |
EN 60825 Class I (Eye-safe) |
Laser Wavelength |
Monochromatic Blue Light (500 nm) |
Field of View (FOV) |
Standard: 20 × 12 cm / Optional: 40 × 22 cm |
Alignment Modes |
Feature Alignment, Marker Alignment, Hybrid Alignment, Photogrammetry |
Working Distance |
40 ± 10 cm |
Outdoor Scanning |
Supported |
Scanning Speed |
10–20 FPS |
Points per Frame |
Up to 300,000 points |
Resolution |
0.12 mm |
Single Frame Accuracy |
0.04 mm |
Volumetric Accuracy |
0.02 mm + 0.02 mm/m |
Depth Camera |
2.0 MP |
Texture Camera |
3.0 MP HD |
Camera Lens |
12 mm / 5 MP |
Output Formats |
STL, OBJ, ASC, PLY |
Interface |
USB 3.0 |
Operating Temperature |
0 – 40 °C (32 – 104 °F) |
Scanner Dimensions |
180 × 80 × 40 mm |
Weight |
650 g |
Power Supply |
Input: 100–220 VAC, 50/60 Hz |
Power Consumption |
15.4 W |
Certifications |
CE, FCC, RoHS, ISO 9001 |
PC Requirements |
Intel Core i7 (8th Gen or above), NVIDIA GPU with CUDA 6.0+ |
Ideal Applications
Sample Products
3D animation
.
Education
.
Preservation
.
