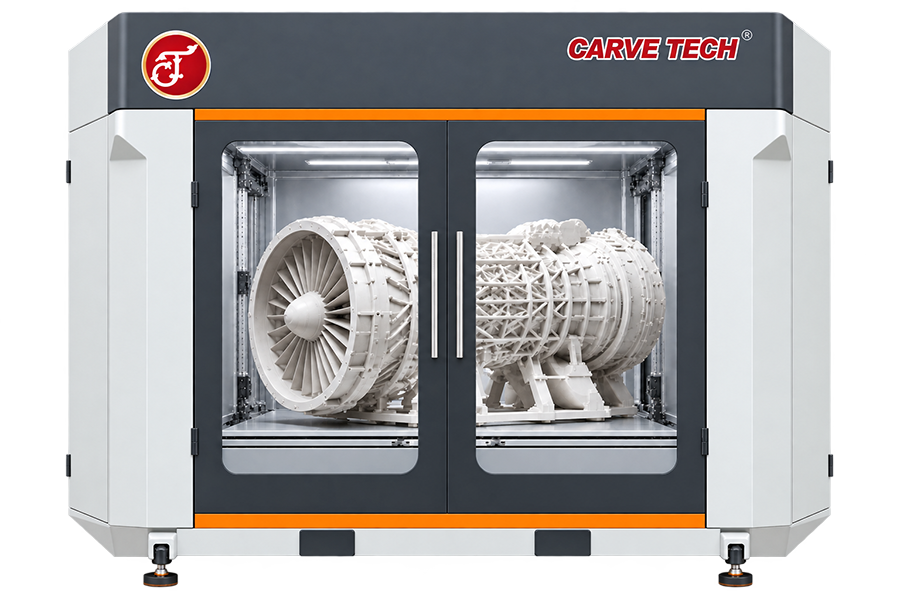

P1813 Plastic 3D Printer
Carve Tech CT P1813 is a large-format plastic 3D printer designed for producing detailed prototypes, functional parts, models, and complex geometries. With support for materials including PVC, Nylon, and wood-filled materials, it provides a versatile platform for industrial and product-development applications. Its large-format printing capability makes it suitable for creating everything from detailed prototypes to larger functional components.
Technical Specifications
| Parameter | Specification |
|---|---|
Build Volume |
1800 × 1300 × 1300 mm |
Machine Dimensions |
2650 × 1950 × 2650 mm |
Build Plate Material |
Aluminum alloy |
Build Plate Temperature |
<160°C |
Nozzle Diameter |
1–8 mm (replaceable) |
Material Output Rate |
1–8 kg/h |
Maximum Nozzle Temperature |
≤300°C |
Nozzle Heating |
3-zone intelligent heating |
Compressed Air Pressure |
0.5–0.7 MPa |
Material Particle Size |
1–5 mm |
Hopper Capacity |
50 kg (external hopper) |
Automatic Feeding System |
Integrated |
Chamber Heating |
Optional |
Drive System |
Servo motor |
Power Supply / Rated Power |
Single-phase, 220 V / 10.2 kW |
Connectivity |
LAN (Local IP) / USB drive |
Supported File Formats |
STL, OBJ, 3MF, STEP, AMF, SVG |
Machine Weight |
1560 kg |
Supported Materials |
PLA, PETG, ABS, PC, PP, HDPE, TPU, TPV, EVA, PETG-GF, PPS-GF, PA-CF, ABS-CF, PC-CF, PEI-CF |
Applications |
Casting molds, aerospace, medical, automotive, education, “Figurings” (as printed), large custom models |
Ideal Applications
Sample Products

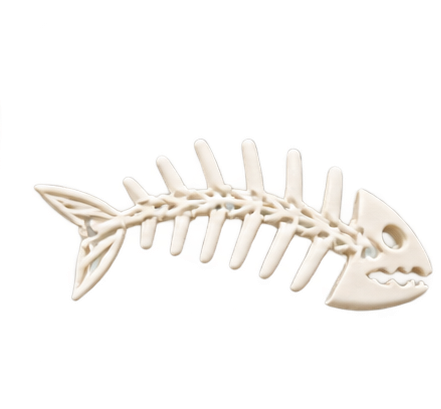

Skelton
.
Shoe Making
.
Prototype Models
.
