Woodworking Machine
4-Axis
4-Axis

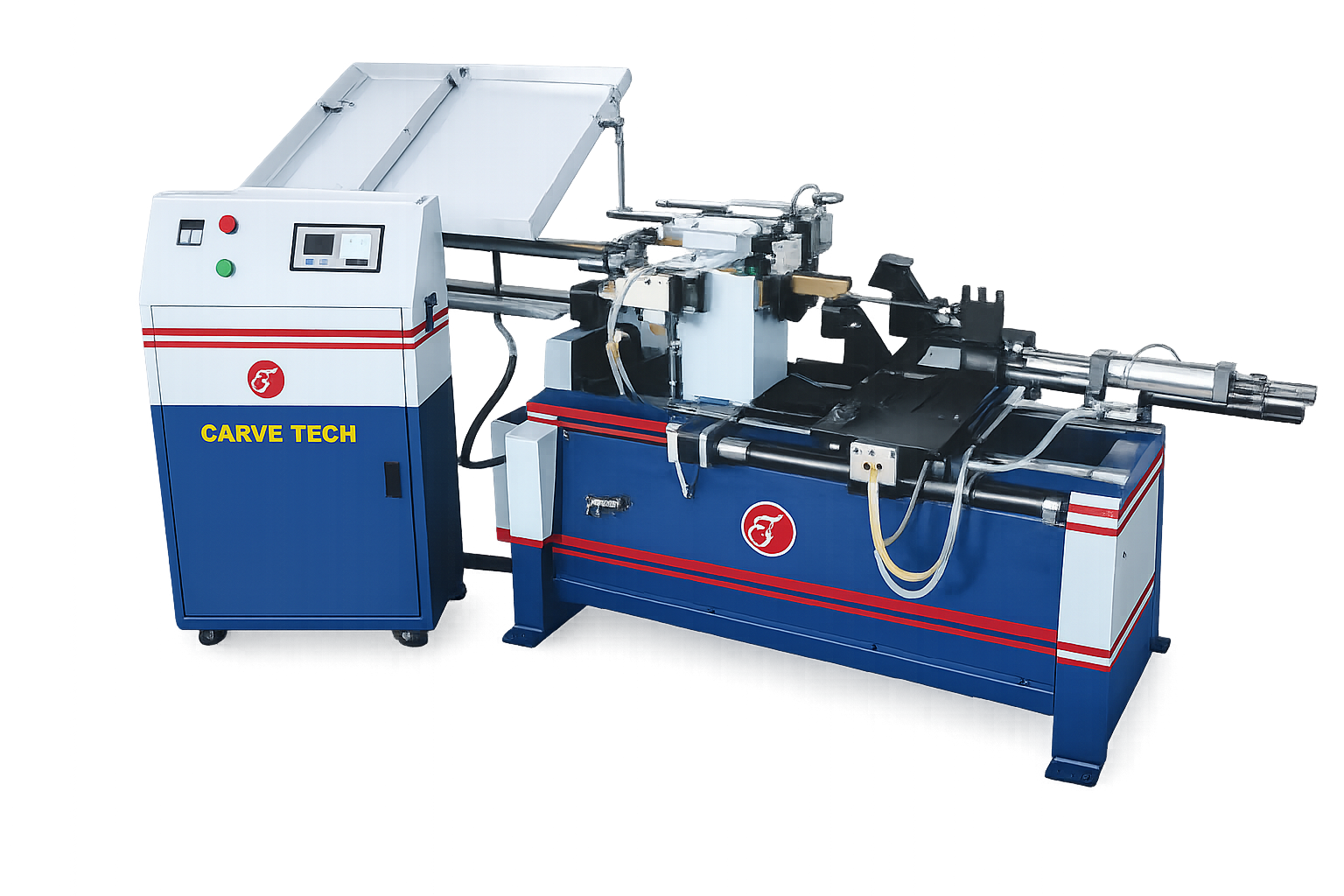

Wood Beads Machine
A semi-automatic 4-axis woodworking machine designed for efficient production of wooden beads, turned profiles, round components, and decorative wood shapes. Its rotary machining system enables consistent shaping of cylindrical workpieces with smooth and repeatable results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating System | NK105 G3 With 4 Axis |
| Max. Job Length | 20-150 mm |
| Max. Turning Dia. | 10-55 mm |
| Cutting Speed | 15000 mm/min |
| Linear Guideways (X,Y,Z) | Taiwan Linear ball bearing Profile Rails |
| Drive System | X, Y: Helical Rack & Pinion, Z: 32mm Lead Screw |
| Drive Motor | Servo |
| Rotary | Heavy Duty Gear Box |
| Power Requirement | 1-Phase (3.0 kW) |
| Electrical Components | L&T, ABB, Schneider, imported Flexible Cable |
| Spindle | HQD 6.0 KW Air Cooled |
| Spindle Speed Range | 6000 - 24000 rpm |
| Lubrication System | Programmable Oil Lubrication |
| Machine Weight | Approx. 900 kg |
Ideal Applications
Wooden Beads
Prayer & Mala Beads
Decorative Wood Components
Wooden Spindles
Round Wooden Profiles
Furniture Turned Parts
Curtain & Blind Components
Wooden Handles
Craft & Décor Products
Custom Cylindrical Components
Sample Products
Wood Beads
.
Wood Beads
.
Wood Beads
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech 4-Axis Wood Beads Machine. Get in touch with our experts today.
