BRAHMA Series - Statue Making
5-Axis
5-Axis

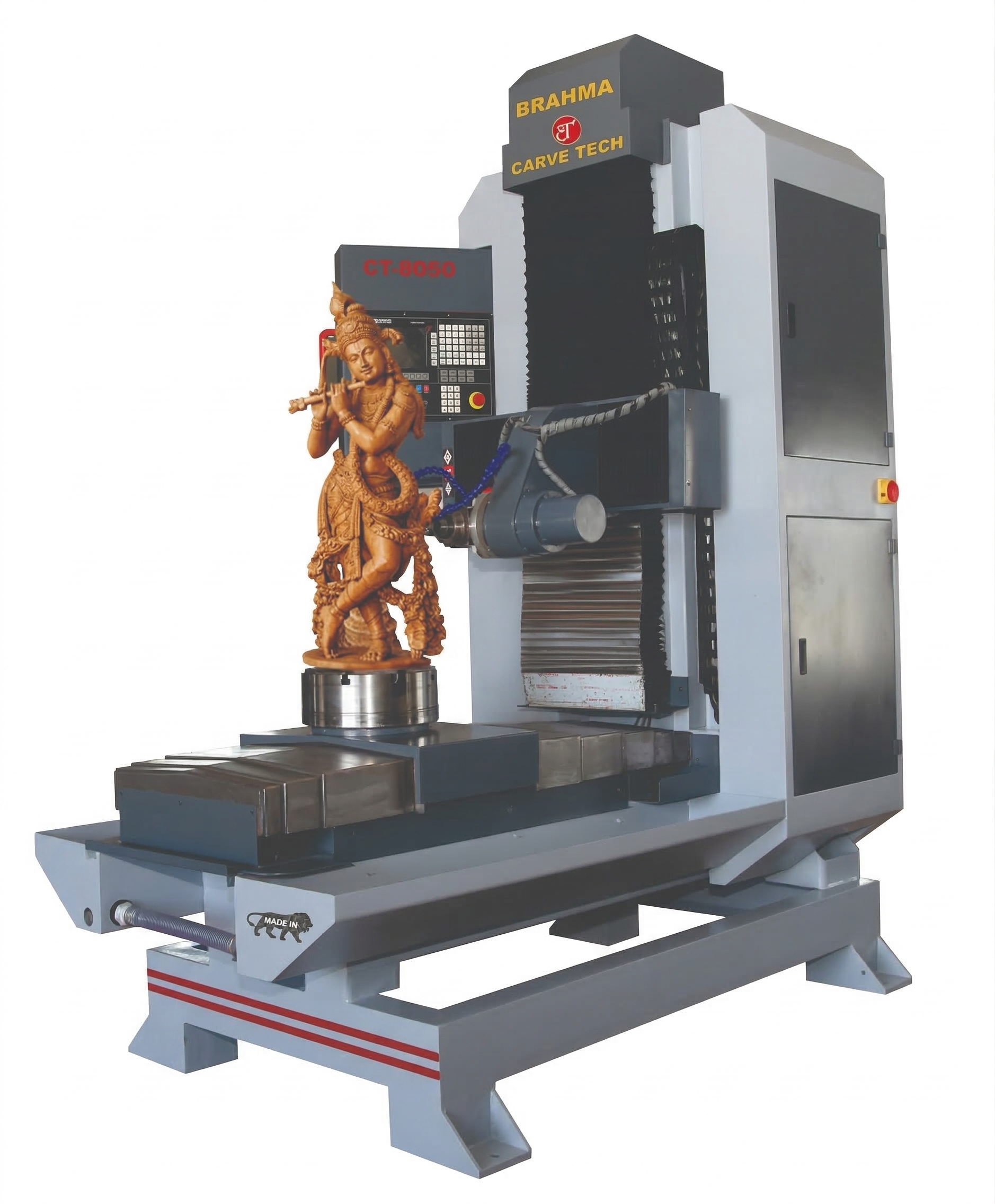

BRAHMA CT8050
CarveTech 5-Axis BRAHMA CT8050 is a specialized CNC statue-making machine designed for detailed 3D carving and sculpting of large, complex forms. Its multi-axis machining capability allows intricate contours and sculptural details to be produced with consistent results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating System | NK300 |
| Working Area | Height: 750 mm; Dia: 350 mm |
| A-Axis (Rotary) | 360° Continuous |
| B-Axis (Tilt) | ±45° |
| Max. Traveling Speed | 20 m/min |
| Max. Working Speed | 15 m/min |
| Positioning Resolution | 0.05 mm |
| Programming Command | G Code*.u00*.mmg*.plt |
| Drive Motor | Servo |
| Spindle Power | 4.5 kW Air Cooled Spindle |
| Power Requirement | AC 380 V, 3 Phase |
| Lubrication System | Programmable Oil Lubrication |
| Machine Weight | Approx. 2000 kg |
Ideal Applications
Statue Making
Religious & Temple Sculptures
Human Figure Sculptures
Portrait Sculptures
Decorative Sculptures
Architectural Figures
Art & Monument Carving
Large 3D Wood Sculptures
Sample Products
Statue
.
Statue
.
Statue
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech 5-Axis BRAHMA CT8050. Get in touch with our experts today.
