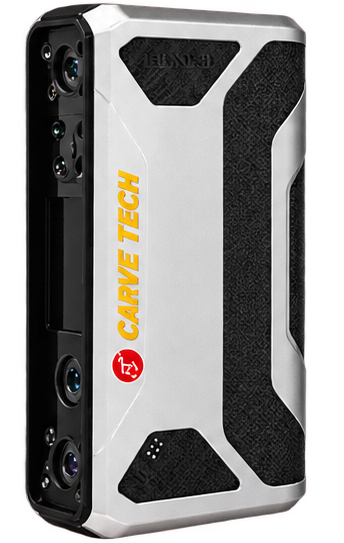

Infrared
(IR) 3D Scanner
Carve Tech Infrared 3D Scanner uses an invisible 850 nm near-infrared light source for fast and reliable 3D data capture. With scanning speeds of up to 20 FPS, 0.12 mm resolution, and 0.06 mm single-frame accuracy, it delivers detailed scanning performance while maintaining a comfortable 40 ± 10 cm scanning distance. Its feature-alignment system, full-color texture camera, and compact 650 g design make it suitable for versatile industrial 3D scanning applications.
Technical Specifications
| Parameter | Specification |
|---|---|
Light Source |
One-wavelength infrared |
Technology |
EEL (Edge-Emitting Infrared) |
Visibility |
Invisible (flash-less) |
LED Indicator |
Yes |
Laser Wavelength |
Monochromatic near-infrared, 850 nm |
Field of View (FOV) |
Standard: 28 × 17 cm / Fine FOV: 12 × 8 cm; Optional: 40 × 32 cm / Fine FOV: 20 × 12 cm |
Alignment Mode |
Feature alignment |
Scanning Distance |
40 ± 10 cm |
Scanning Speed |
10–20 FPS |
Resolution |
0.12 mm |
Single Frame Accuracy |
0.06 mm |
Output Formats |
STL, OBJ, ASC, PLY |
Sensor Camera |
1.3 MP |
Texture Camera |
3 MP full-color |
Camera Lens |
12 mm / 5 mm |
Working Temperature Range |
−10 °C to 40 °C (14 °F – 104 °F) |
Interface |
USB 3.0 |
Scanner Dimensions |
195 × 60 × 42 mm |
Weight |
650 g (1.9 lb) |
Power Source |
Input: 100–220 VAC, 50/60 Hz; Output: 15 V, 40 W |
Certifications |
CE, EMC, CE-LVD, FCC, WEEE |
PC Requirements |
Intel Core i7 (8th Gen or above), NVIDIA GPU with CUDA 6.0+ |
Ideal Applications
Sample Products
3D animation
.
Education
.
Preservation
.
