4-Axis CNC Router
4-Axis
4-Axis
Vishwakarma SR- CT1325

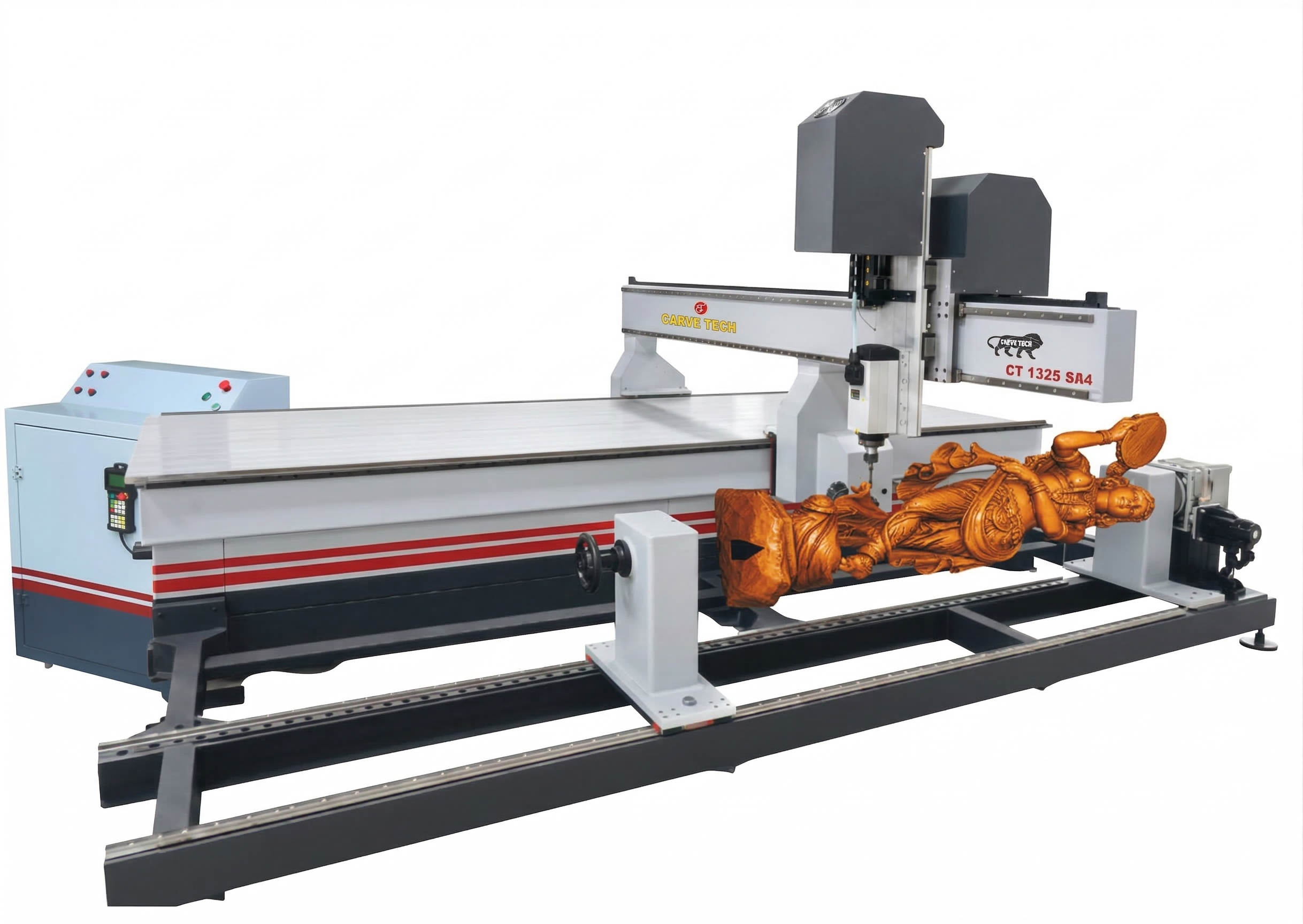

The CarveTech 4-Axis Vishwakarma Side Rotary CT 1325 is a CNC router designed for simultaneous 4-axis machining of complex 3D and rotary components. It combines a large working area with a dedicated rotary axis for detailed carving, sculpting and machining of cylindrical and irregular wooden components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating System | NK105 G3 (Simultaneous) |
| Working Area (3-Axis) | X: 1300 x Y: 2500 x Z: 250-500 mm (Customized) |
| 4-Axis (Rotary) | Customized 4th Axis Working Area |
| Linear Guideways (X,Y) | Helical Rack Pinion, 25mm Square Size |
| Z-Axis Ball Screw | 32 mm Dia. |
| A-Axis Dia | 0-600 Customized |
| Z Axis Structure | Customized Heavy Structure with Pneumatic Piston Control |
| Gear Box | Exclusive Heavy Gear Box without Back lash |
| Drive Motor | Hybrid Servo / Pure Servo |
| Z-Axis Motor | Servo Brake Motor |
| Electrical Components | L&T, ABB, Schneider, Imported Flexible Cables |
| Inverter (VFD) | SUNFAR |
| Spindle | Air Cooled / Water Cooled |
| Power Requirement | AC 380 V |
| Lubrication System | Programmable Oil Lubrication |
| Design Software | Z-Brush, Maya & 3D Scanner (For STL Creation) |
| Toolpath Software | Own Software, Power mill, Mastercam etc |
Ideal Applications
Large Wooden Statues
Religious & Temple Carvings

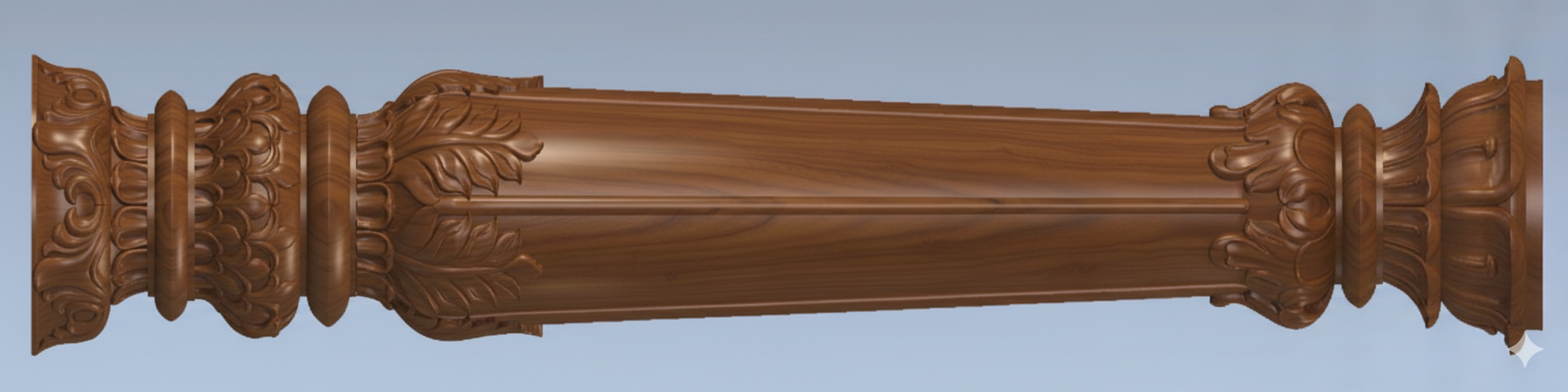

Decorative Columns & Pillars
Architectural Woodwork
3D Sculptures & Figurines
Furniture Components
Ornamental Wood Carving
Large Cylindrical & Custom Components
Sample Products
Vishwakarma Spindles
.

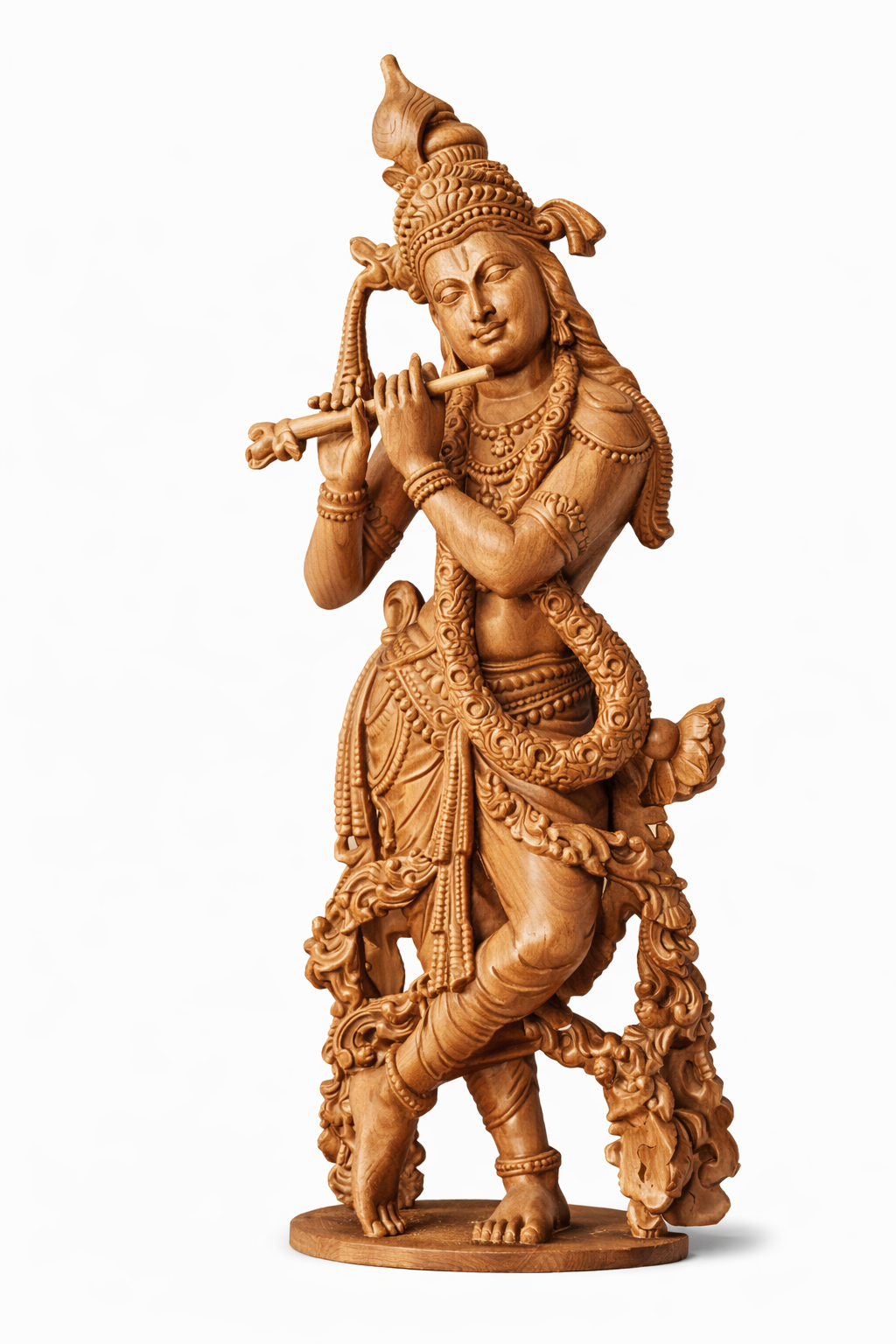

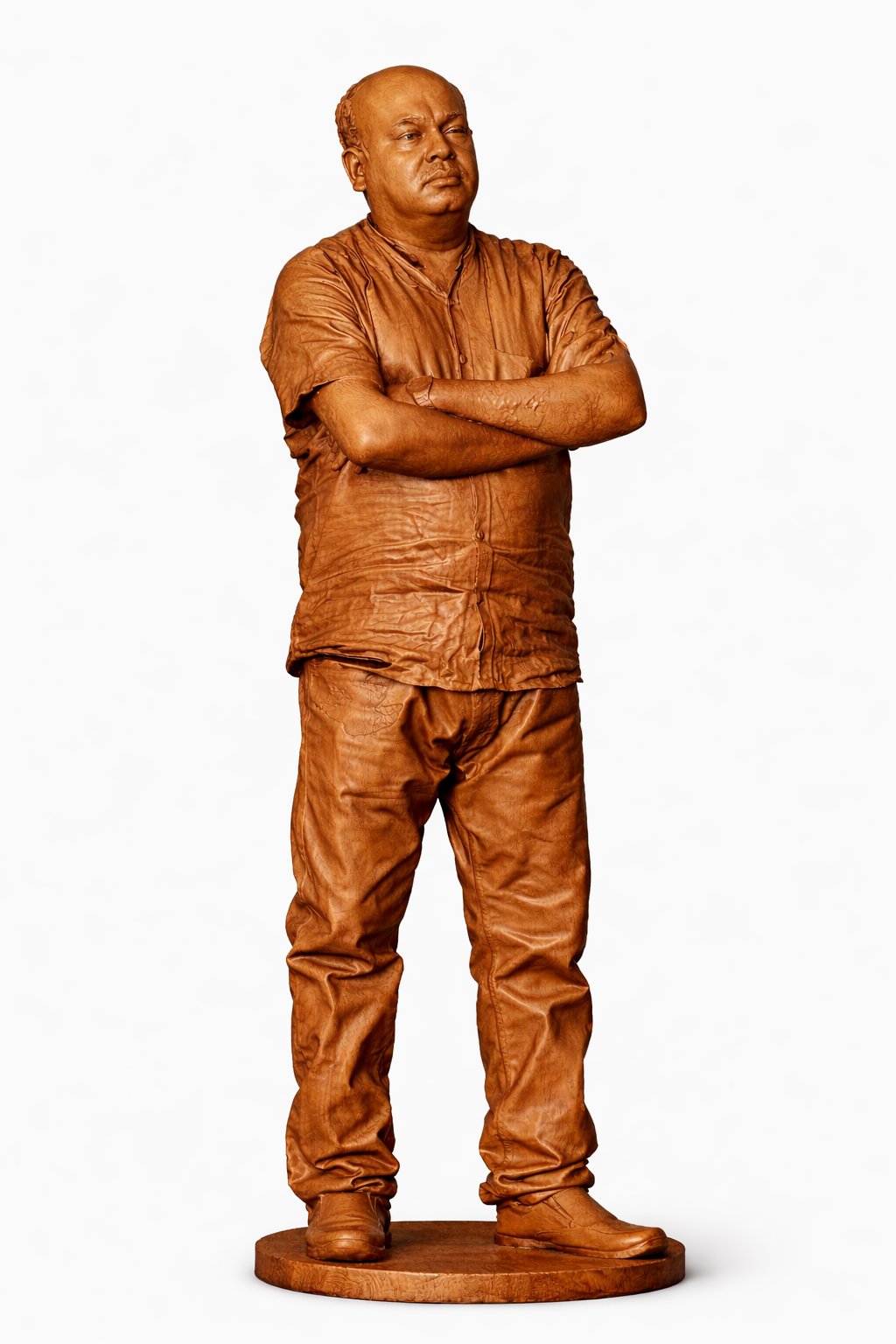

Large Wooden Statues
.
Religious & Temple Carvings
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech 4-Axis Vishwakarma CT1325. Get in touch with our experts today.
