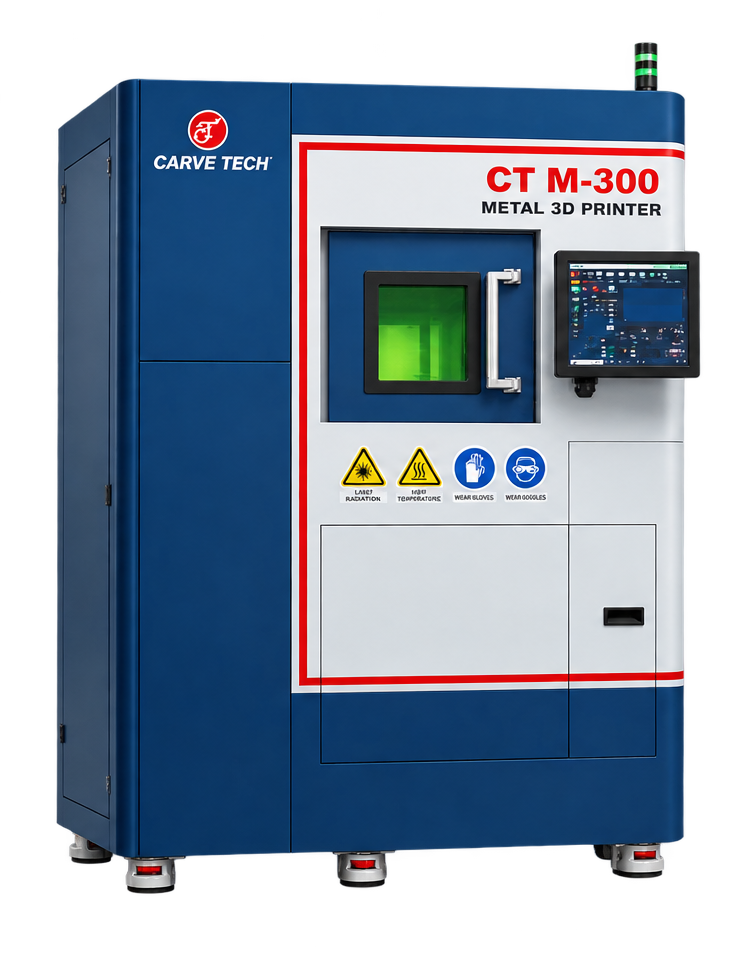

M300 Metal 3D Printer
Carve Tech CT M300 is a high-power industrial metal 3D printer designed for large-scale additive manufacturing and production of complex metal components. With a 300 × 300 × 400 mm build size, dual-fiber-laser configuration, two-way powder spreading, and multi-layer air-curtain protection, it provides a robust platform for demanding metal printing applications. The system supports materials including stainless steel, cobalt-chromium, titanium, pure titanium, die steel, and aluminium alloys.
Technical Specifications
| Parameter | Specification |
|---|---|
Print Size |
300x300x400 mm |
Machine Size |
2705x990x2100 mm |
Machine Weight |
1200 kg |
Powder Spreading Method |
Powder Feeding & 2-Way Powder Spreading |
Preheat Temperature |
0-200°C |
Laser Type |
Fiber Laser |
Maximum Power |
10kW |
Number of Lasers |
2 Lasers |
Power Supply |
3-Phase 380V |
Focused Spot |
0.05-0.2mm Adjustable |
Vibrating Mirror Type |
Grating Type High-Precision Digital Coding Lens |
Gas Shield |
Argon / Nitrogen |
Scanning Speed |
0-10 m/s |
Layer Thickness |
0.02-0.15mm |
Circulatory System |
0-5m³/min Multi-Layer Air Curtain Protection |
Z axis Resolution |
1μm |
Filter System |
The filtration efficiency of particle larger than 0.5 micron is 99.9%. (Upgradable permanent filter) |
Scanning Mode |
Checkerboard grid, Honeycomb grid, Octagonal grid, Strips, Parallel Lines, etc. |
Control Software |
CarveFab, with operation authority to control process guidance and online monitoring. |
Printable Material |
Stainless steel, Cobalt-Chromium Alloy, Titanium Alloy, Pure Titanium, Die Steel, Aluminum Alloy, etc. |
Scanning Accuracy |
The scanning repetition accuracy is ≤ 2 μ rad; The linearity is 99.9% and the range is 20%. Proportional drift: 8PPM/°C |
