4-Axis CNC Router
4-Axis
4-Axis

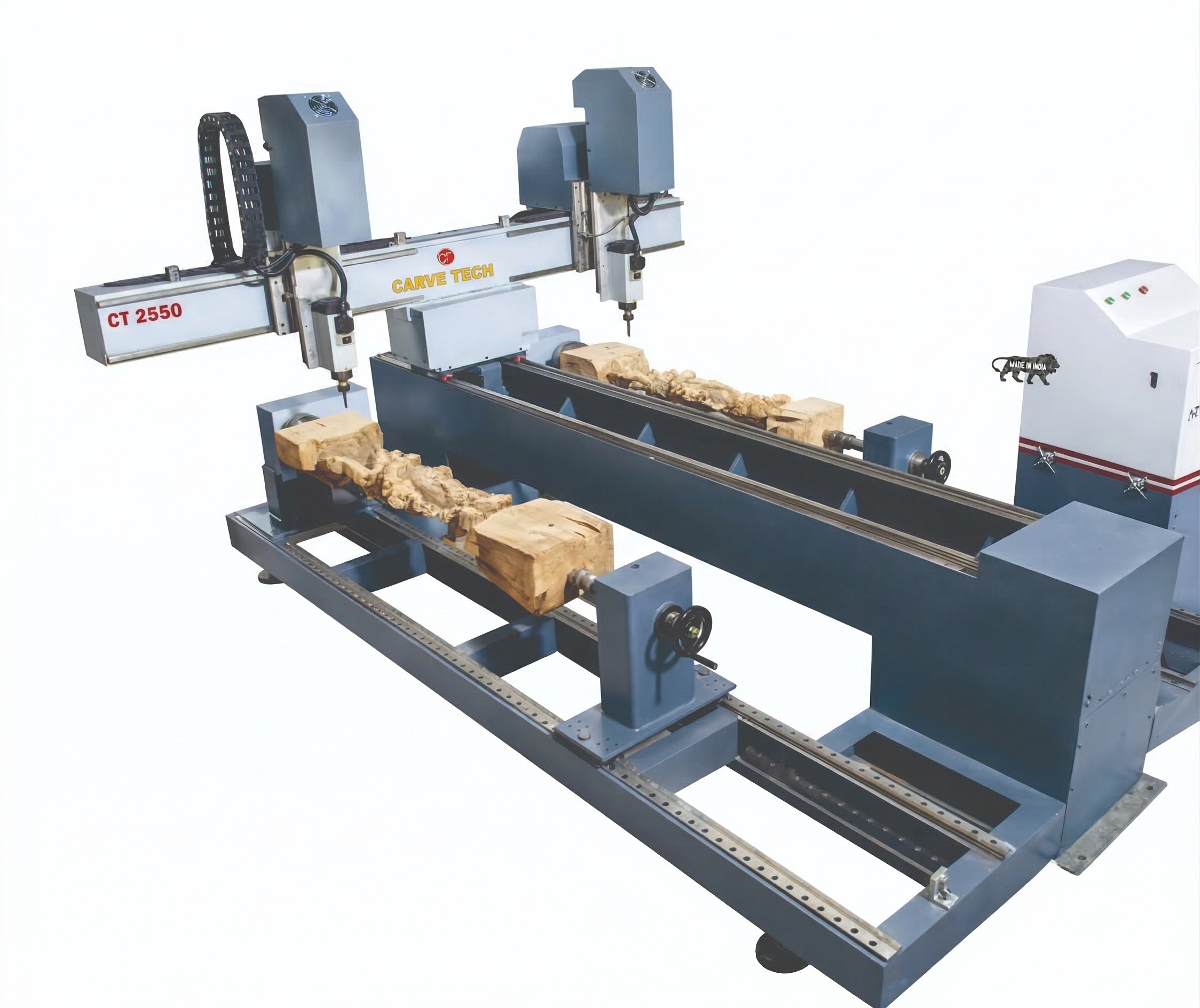

Crafer CT2550
The CarveTech 4-Axis Crafter CT 2550 is a heavy-duty CNC router designed for rotary and complex 3D carving of large wooden components. Its 4-axis rotary capability enables detailed machining of cylindrical, sculptural and architectural elements with consistent results.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating System | NK105 G3 4 Axis |
| Working Area (Axis) | X: 600 x Y: 2500 x Z: 300 mm |
| 4-Axis (Rotary) | 500 mm Dia x 2500 mm Length |
| Cutting Speed | 15,000 m/min |
| Linear Guideways (X,Y,Z) | Taiwan Linear Ball Bearing Profile Rails |
| Drive System | X,Y: Helical Rack Pinion, Z: 32 mm Lead Screw |
| Rotary System | Heavy-Duty Gearbox |
| Drive Motor | Servo |
| Electrical Components | L&T, ABB, Schneider, Imported Flexible Cables |
| Spindle Power | 6.0 KW HOD Air Cooled Spindle |
| Spindle Speed Range | 6,000 - 24,000 rpm |
| Power Requirement | 3 Phase (≥ 20 KW) |
| Weight | Approx. 2500 kg |
| Lubrication System | Programmable Oil Lubrication |
Ideal Applications
Large Wooden Statues
Temple & Religious Carvings
Decorative Columns & Pillars
Architectural Wood Carving
Furniture Components
Sculptural Woodwork
Ornamental Panels & Elements
Large Cylindrical Components
Sample Products

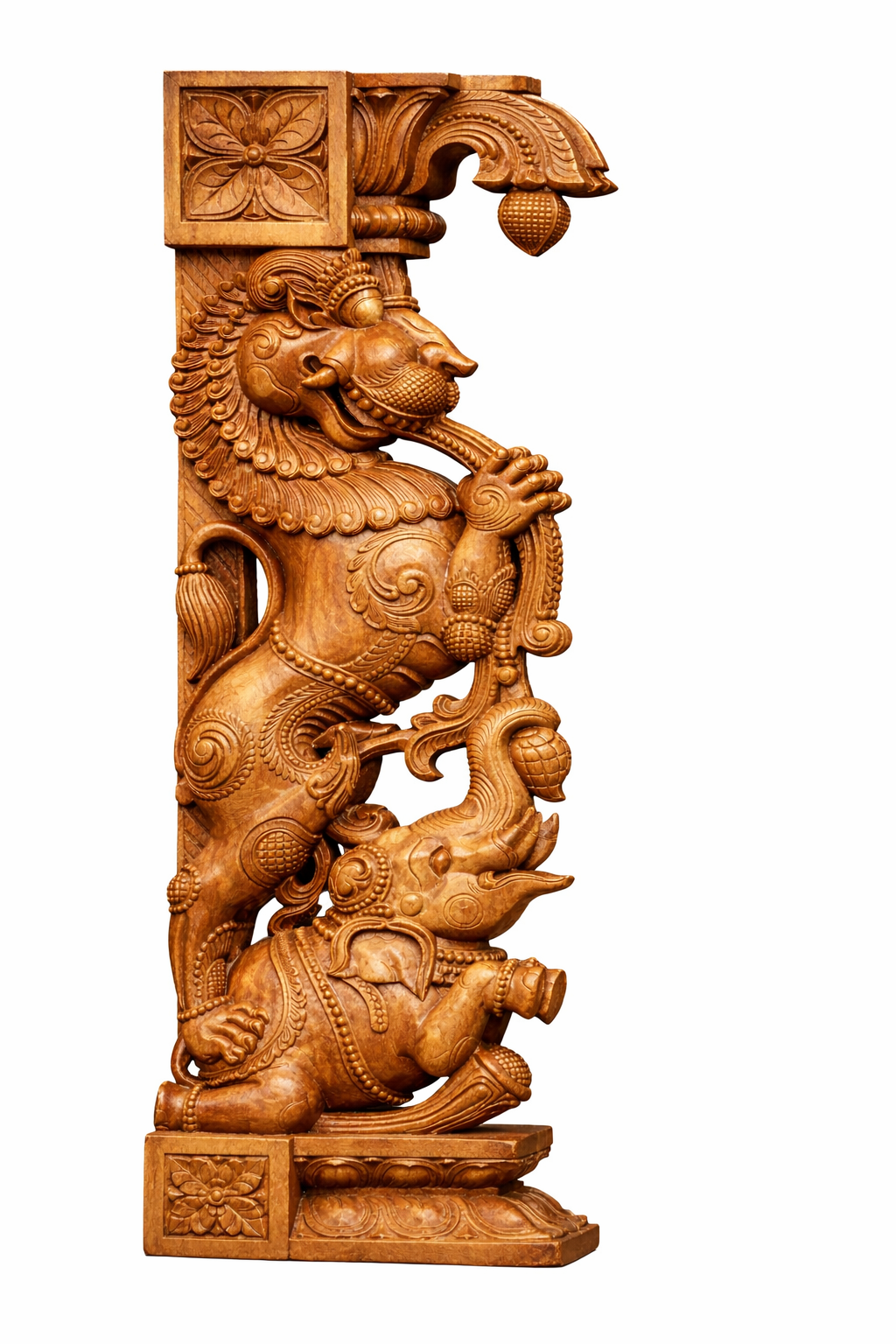

Temple Carvings
.

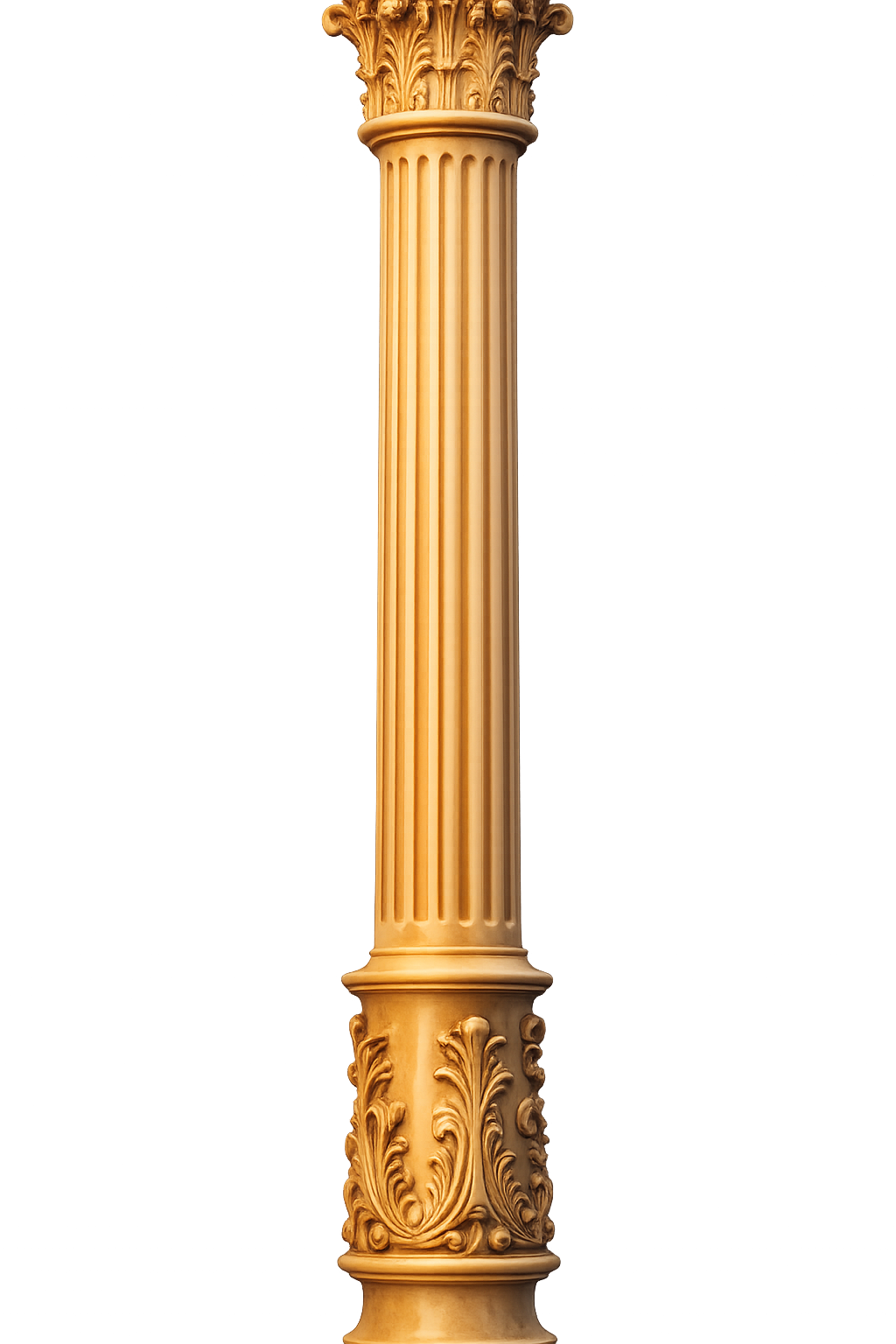

Decorative Columns & Pillars
.

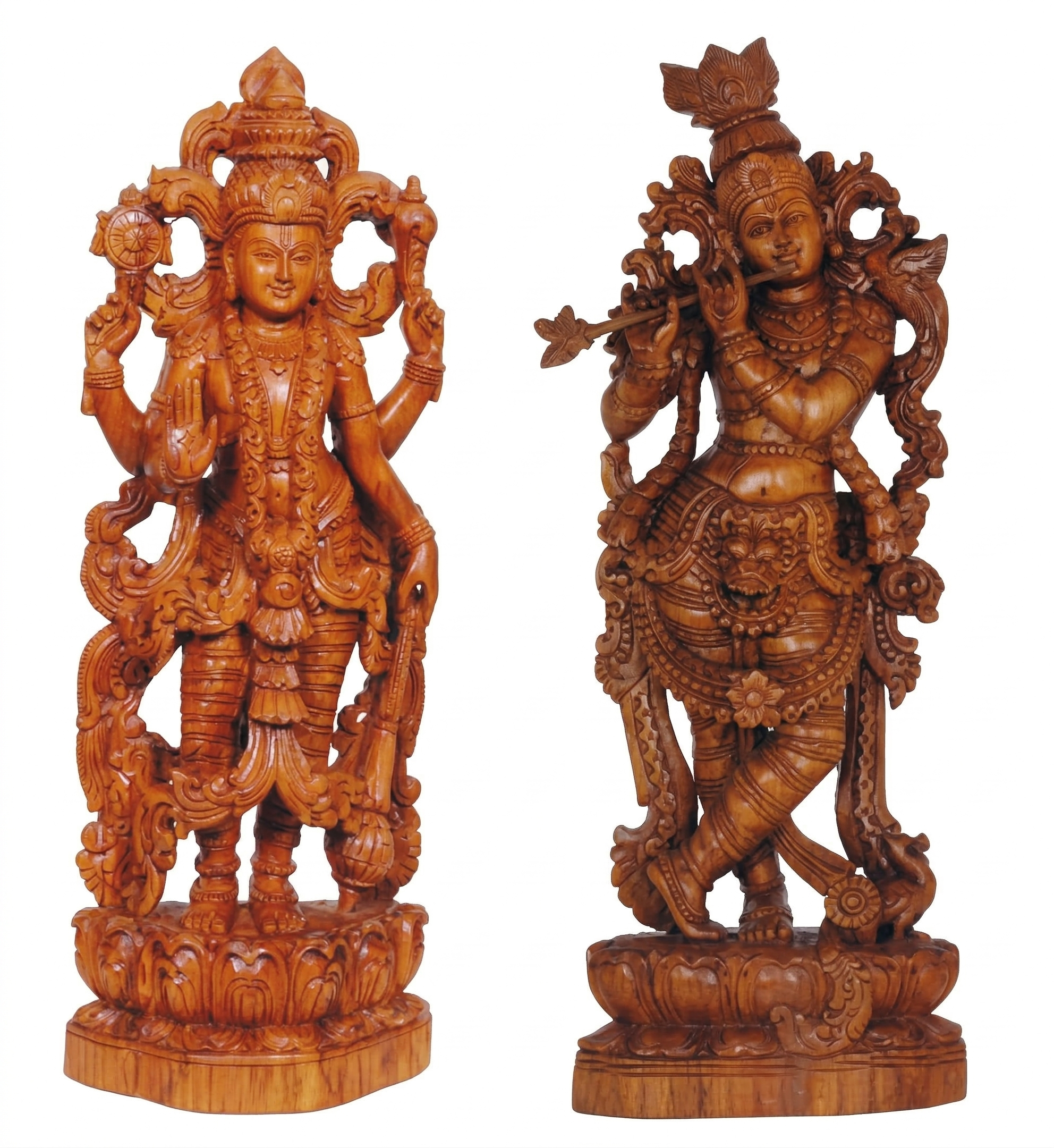

Religious Carvings
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech 4-Axis Crafer CT2550. Get in touch with our experts today.
