Single-Job CNC Router

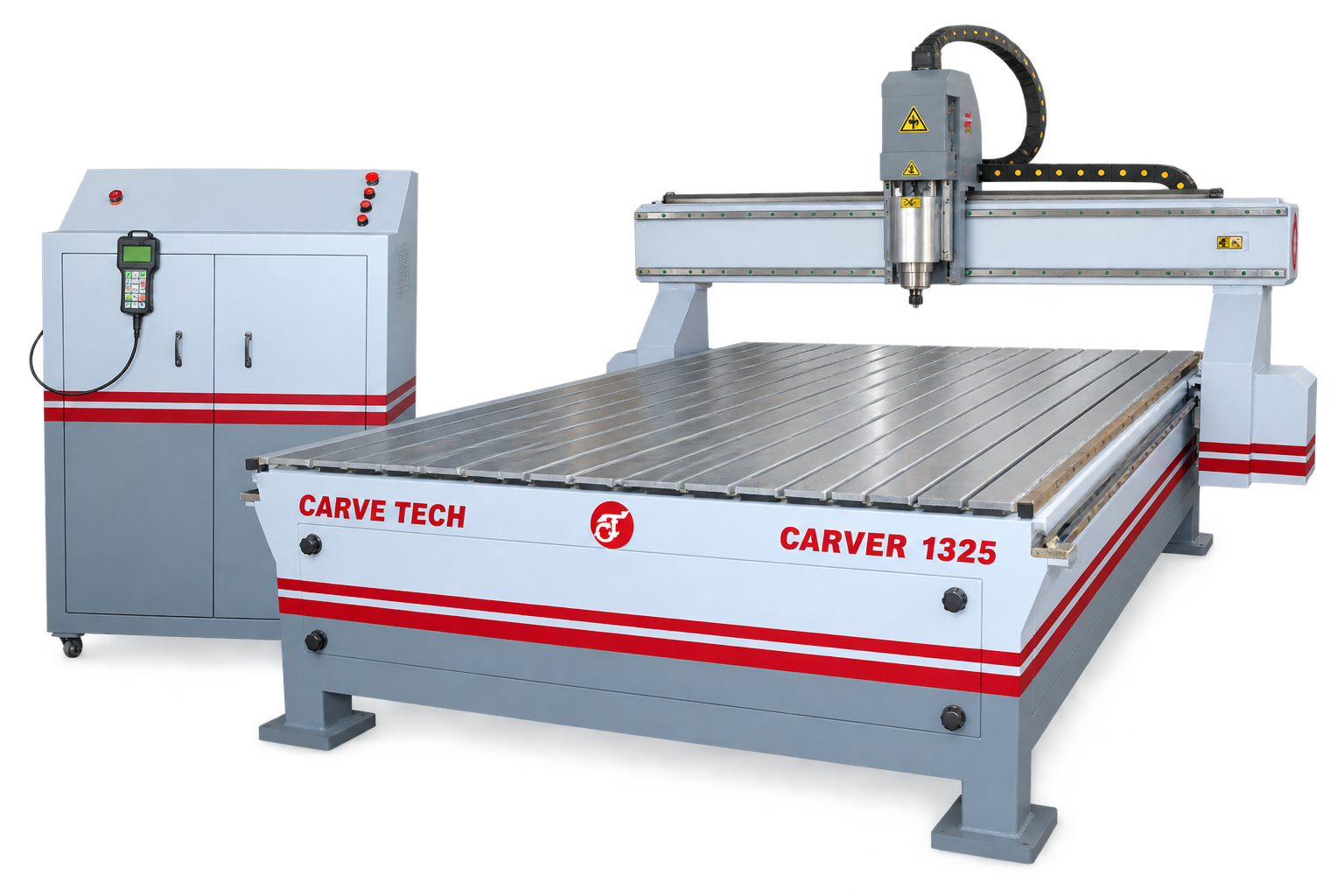

CARVER CNC ROUTER
CARVER CNC ROUTER
1325
The CarveTech Carver 1325 is a versatile single-spindle CNC router designed for cutting, carving, engraving and profiling wood and wood-based materials. It combines robust construction with reliable CNC control for consistent results across detailed designs and production applications..
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating System | NK105 G2/RichAuto |
| Control Unit | External |
| Max. Working Area | X: 1300 x Y: 2600 x Z: 300 mm |
| Cutting Speed | XY: 15000 mm/min; Z: 8000 mm/min |
| Max. Material Height | 300 mm |
| Max. Material Width | 1350 mm |
| Linear Guideways (X,Y,Z) | Taiwan Linear Ball Bearing Profile Rails |
| Drive System | X,Y: Helical Rack and Pinion, Moulding Gear Box; 25 mm Lead screw |
| Drive Motor | Servo / Stepper |
| Electrical Components | L&T, ABB, Schneider, Imported Flexible Cable |
| Spindle Power | 2.2KW to 9.0KW Air / Water Cooled |
| Spindle Speed Range | 6000 - 24000 rpm |
| Power Requirement | Single / 3-Phase, ≥3 kV |
| Machine Weight | Approx. 1000 kg |
Ideal Applications
Furniture & Cabinet Making
Door & Panel Manufacturing
Decorative Wood Carving
Signage & Lettering
Architectural Woodwork
2D & 3D Carving
MDF, Plywood & Solid Wood
Custom Wood Components
Sample Products
Wood Carving
.
Wood Carving
.
Wood Carving
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Build Perfect
Wooden Bowls?
Boost your productivity and craftsmanship with CarveTech CNC Wood Bowl Making Machines. Get in touch with our experts today.
