CNC Wood Turning Lathe
Semi-Auto
Semi-Auto

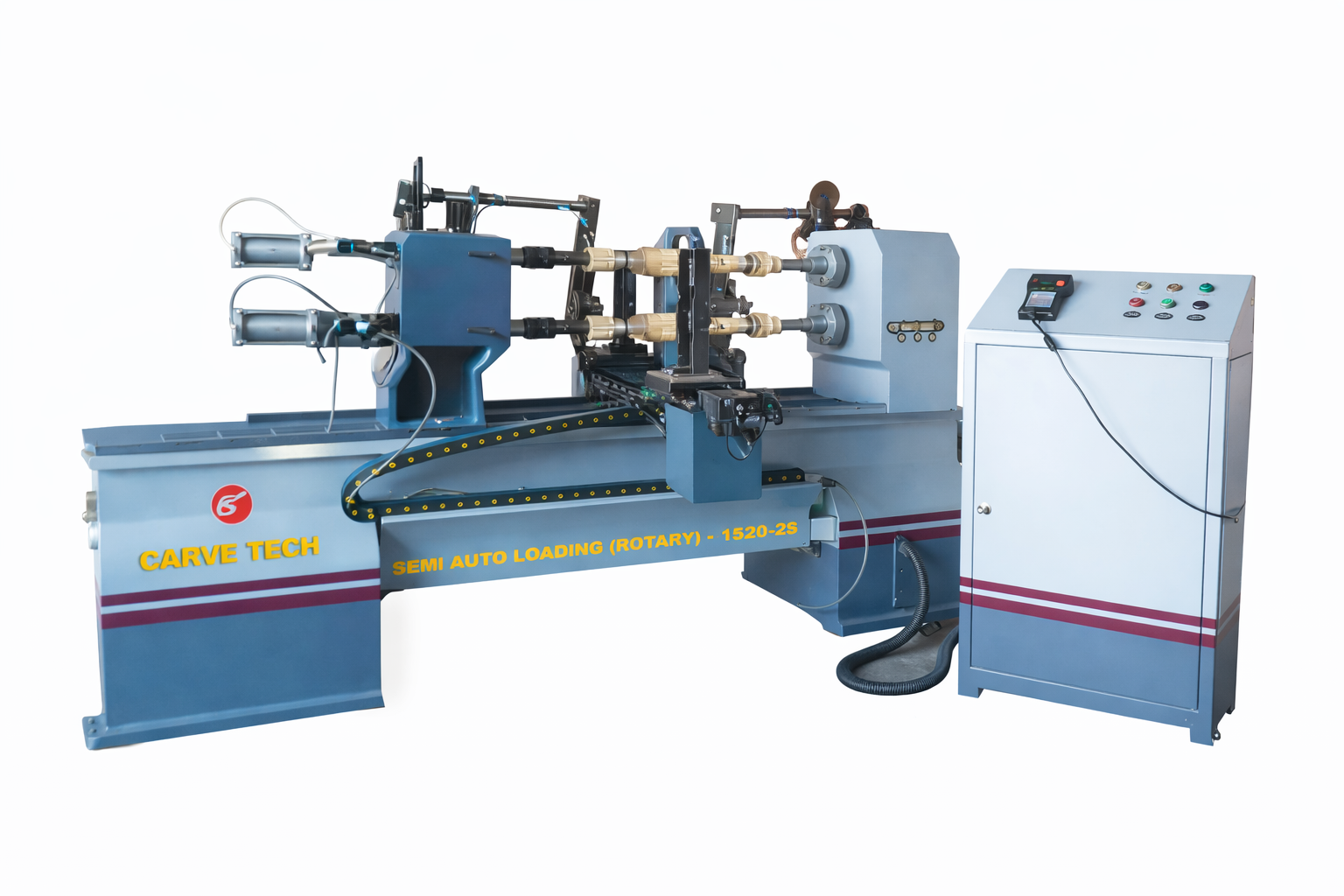

Loading Rotary CNC Wood Turning Lathe
CarveTech Semi-Auto Loading Rotary CNC Wood Turning Lathe – CT 1520-2S is designed for efficient CNC turning of wooden components with semi-automatic loading and rotary machining. It supports repeatable production of turned profiles while reducing manual handling.
Technical Specifications
| Parameter | 1020-2S | 1520-2S |
|---|---|---|
| Operating System | NK105 G3 | NK105 G3 |
| Max. Turning Length | 1000 mm | 1500 mm |
| Max. Turning Diameter | 200 mm | 200 mm |
| Rotary Axis Working Area | 1000 mm × 180 mm | 1500 mm × 180 mm |
| Accuracy | < 0.05 mm | < 0.05 mm |
| Total Power | 9 kW | 9 kW |
| Main Motor Power | 3 HP | 3 HP |
| Spindle Power | 3.5 kW, Air Cooled × 2 | 3.5 kW, Air Cooled × 2 |
| Working Voltage | AC 380 V, 50 / 60 Hz | AC 380 V, 50 / 60 Hz |
| Air Pressure | 6–8 Bar | 6–8 Bar |
| Machine Weight | Approx. 1500 kg | Approx. 2000 kg |
Ideal Applications
Table & Chair Legs
Furniture Components
Bed Posts
Staircase Balusters
Decorative Columns
Wooden Spindles
Turned Furniture Profiles
Batch Production of Wooden Components
Sample Products

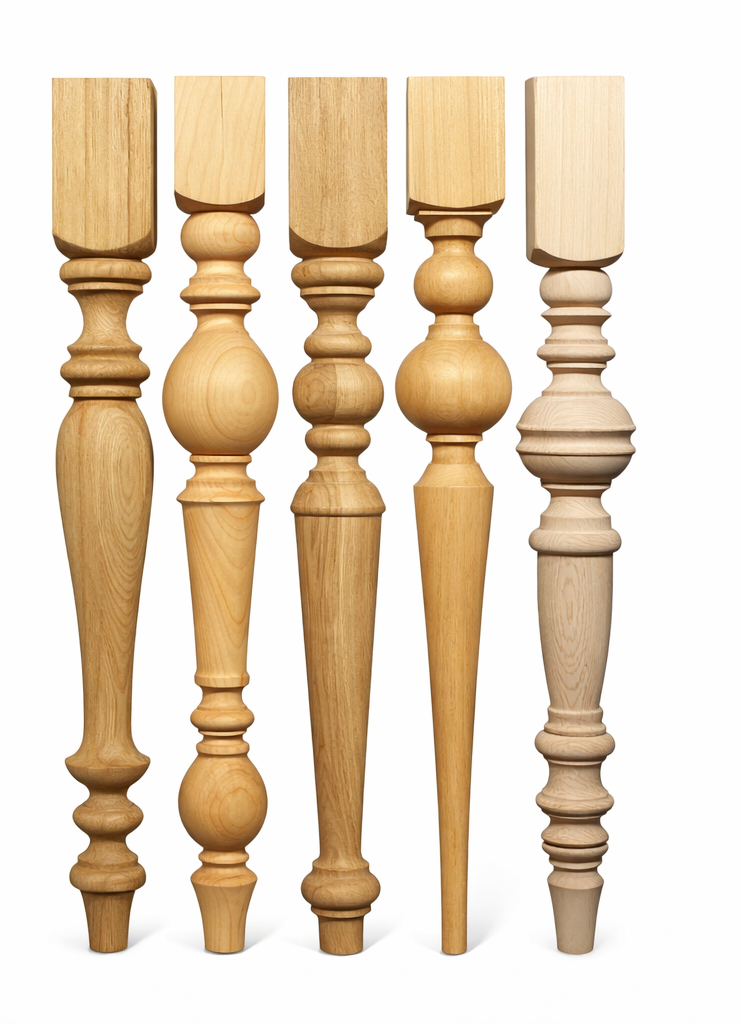

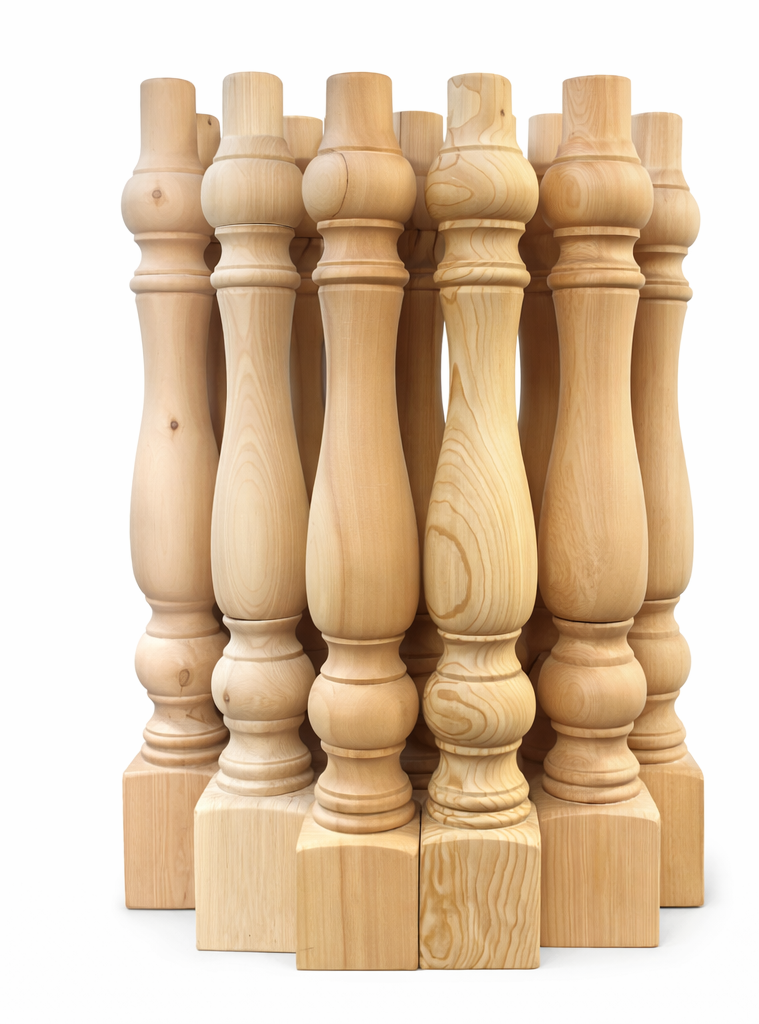

Table & Chair Legs
.
Furniture Components
.
Table & Chair Legs
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech Semi-Auto Loading Rotary CNC Wood Turning Lathe. Get in touch with our experts today.
