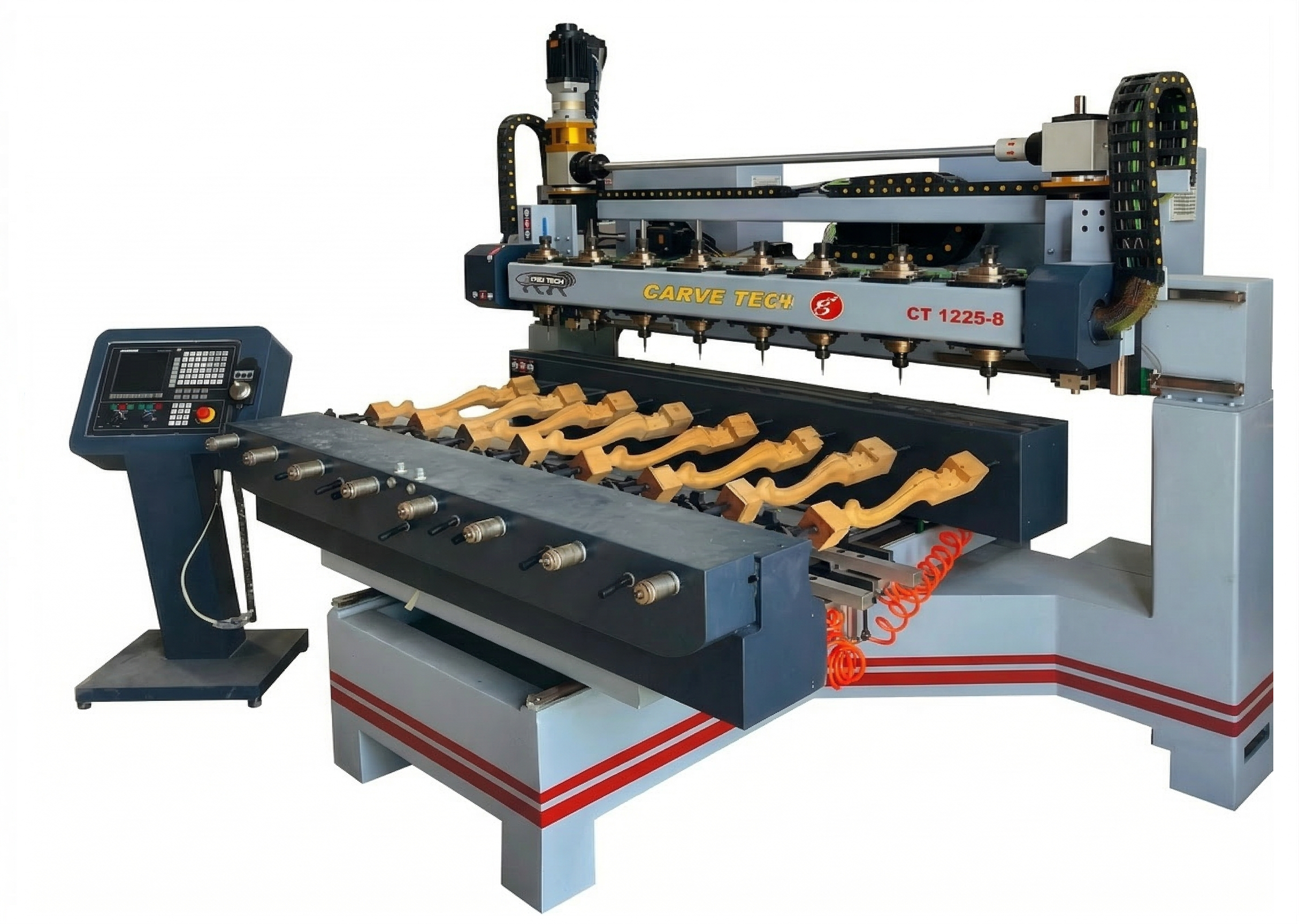

5-Axis CNC Router
5-Axis
5-Axis
Sirpi CT1225-8/4
The CarveTech 5-Axis Sirpi CT 1225-8/4 is a high-productivity multi-axis CNC carving machine designed for complex 3D and rotary machining. With simultaneous machining of up to 8 jobs, it enables detailed carving of intricate wooden components while maintaining consistent quality and repeatability
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating System | NK300 |
| Working Area | X: 1200 x Y: 220 mm |
| Working Area (Rotary) | 40 mm (220 mm Dia) |
| A-Axis (Rotary) | 360° |
| B Axis (Tilt) | ±45° |
| Table Size | 1400 x 3000 mm |
| Max. Feeding Rate | 4-55 m/min |
| Positioning Resolution | 0.05 mm |
| Programming Command | G code*.u00*.mmg*(Powermill) |
| Spindle Power | 3.2 KW x (2) or (4), Water Cooled |
| Spindle Speed Range | 6000-24000 rpm |
| Power Requirement | AC 380 V, 50Hz |
| Drive Motor | Servo |
| Electrical Components | L&T, ABB, Schneider, Imported Flexible Cable |
| Lubrication | Programmable Oil Lubrication |
Ideal Applications
Intricate Furniture Components
Decorative Furniture Carvings
Architectural Woodwork
3D Sculptures & Statues
Temple & Religious Carvings
Ornamental Profiles
Carved Panels & Components
Repeated Batch Production

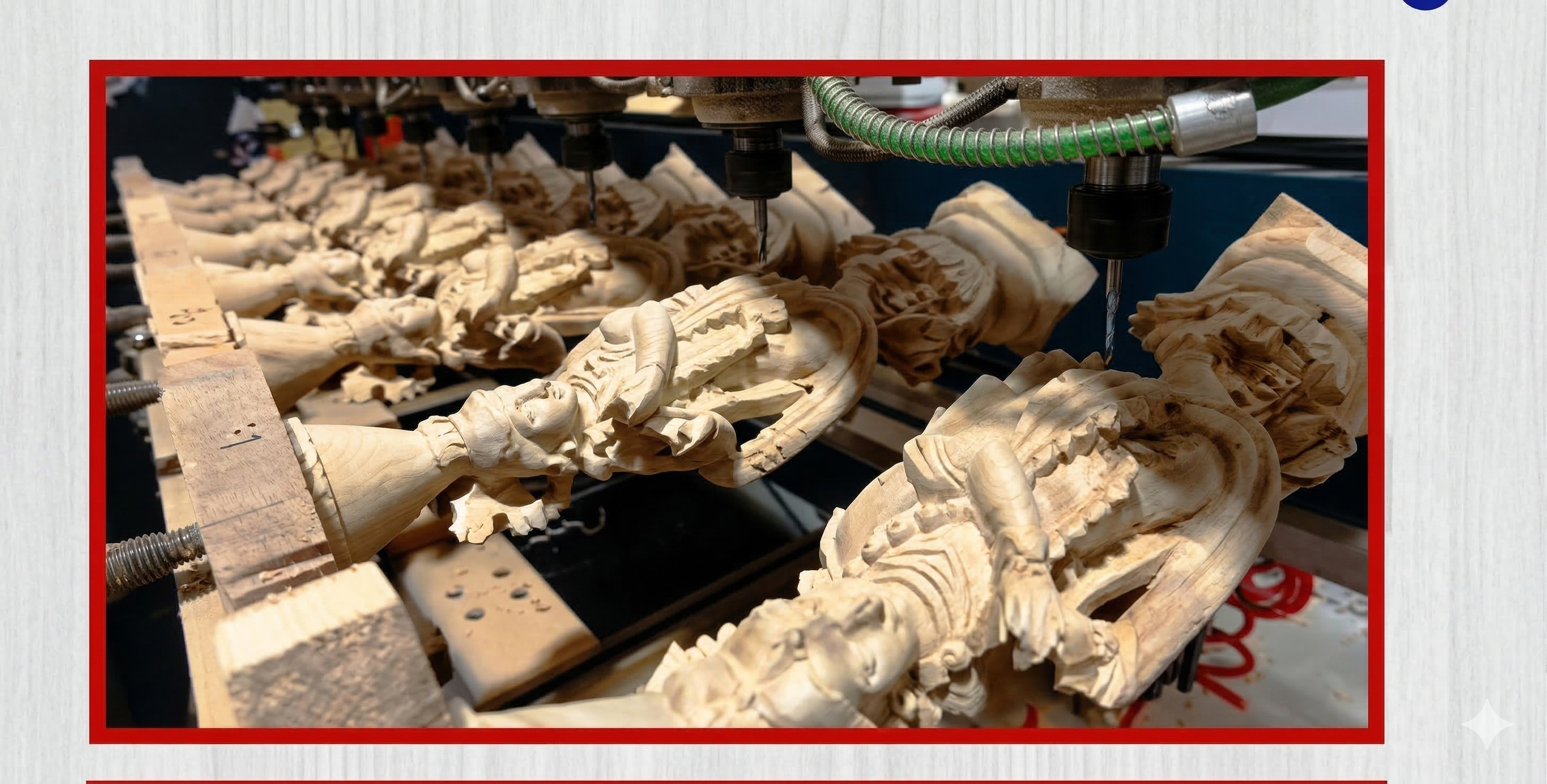

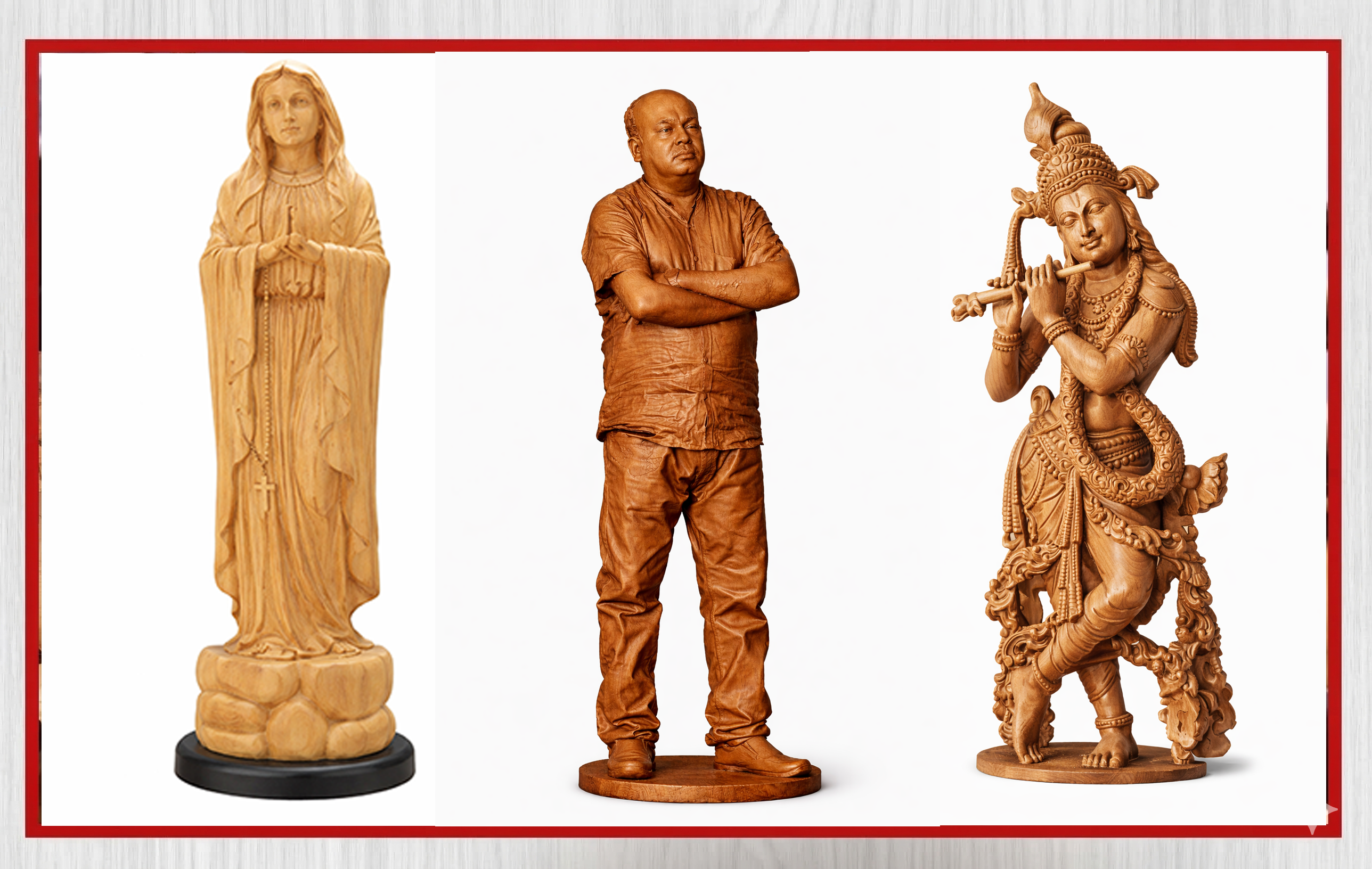

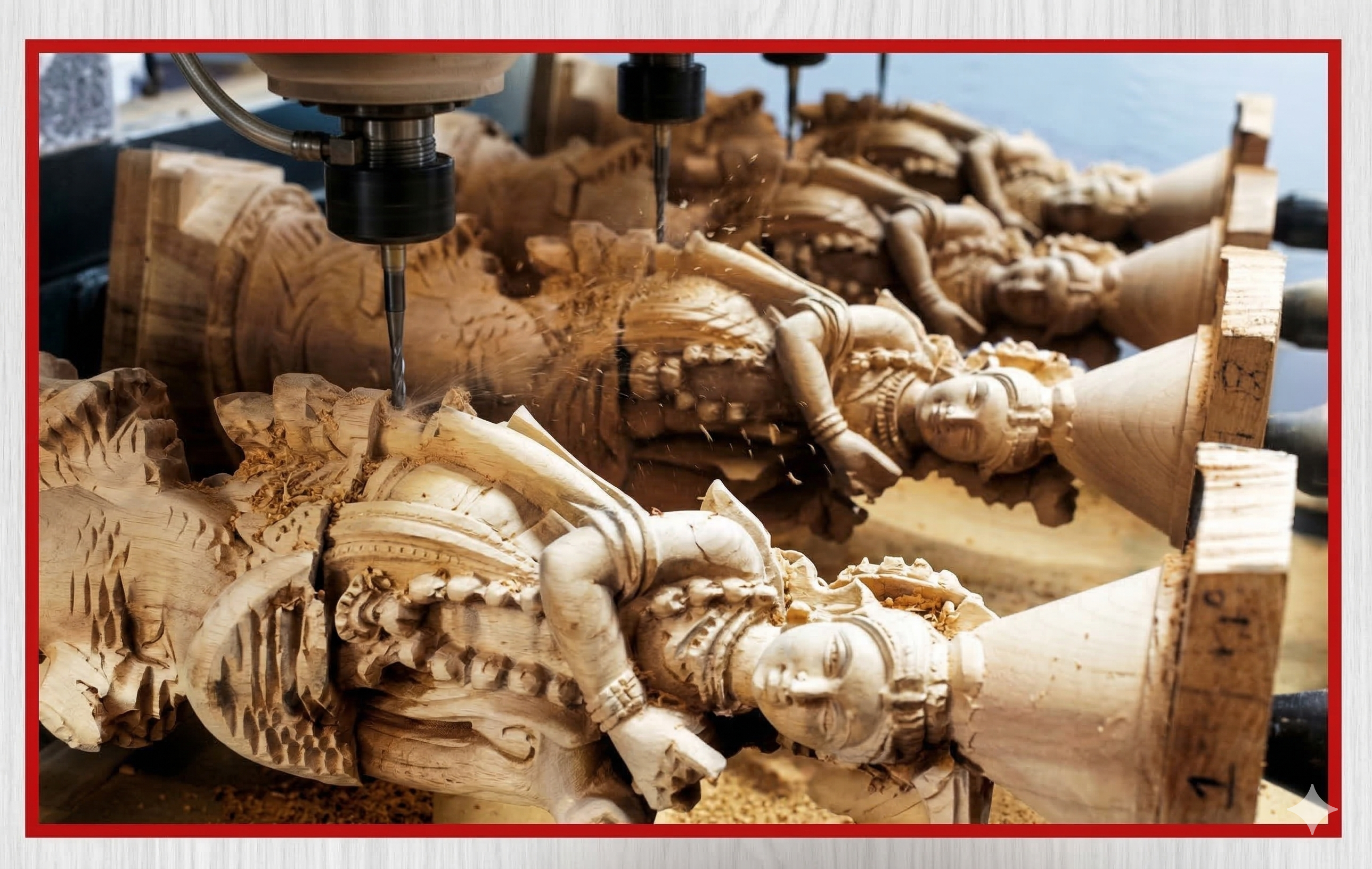

Sample Products
5Axis Sirpi
.
5Axis Sirpi
.
5Axis Sirpi
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech 5-Axis Sirpi CT1225-8/4. Get in touch with our experts today.
