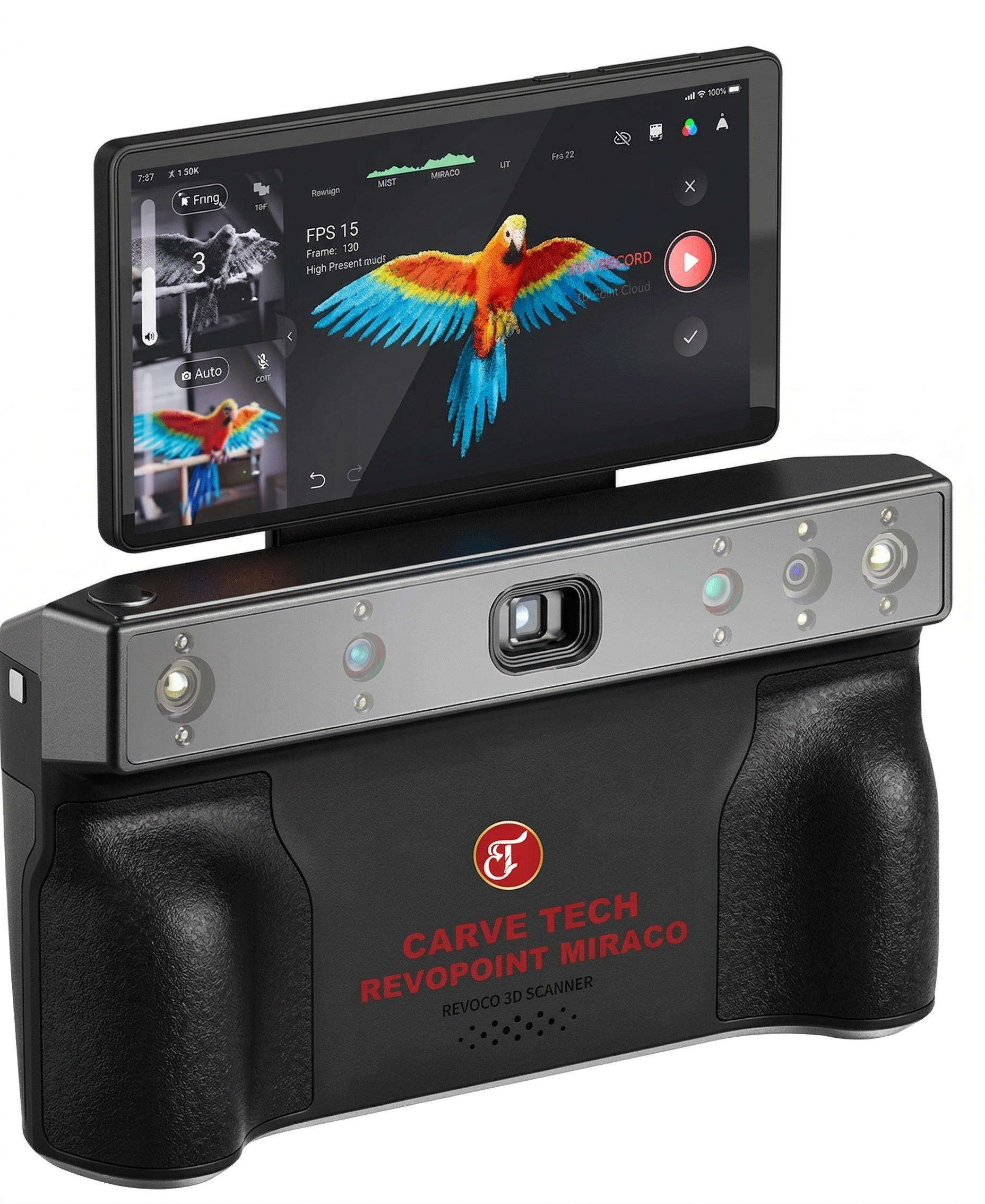

MIRACO
3D Scanner
Carve Tech MIRACO 3D Scanner is a versatile standalone 3D scanning solution designed for fast, flexible, and high-quality 3D data capture. With multiple scanning modes, advanced tracking options, built-in computing, and support for challenging objects such as transparent, dark, and highly reflective surfaces, MIRACO is suitable for industrial inspection, reverse engineering, 3D scanning, and point-cloud processing.
Technical Specifications
| Parameter | Specification |
|---|---|
Product Name |
Revopoint MIRACO |
Single-frame Accuracy, up to |
0.05 mm |
Single Capture Area at Nearest Distance |
28 × 53 mm at 100 mm |
Two Capture Modes |
Single-shot Mode, Continuous Capture Mode |
Minimum Scan Volume |
10 × 10 × 10 mm |
Working Distance |
100–1000 mm |
Auxiliary Lighting |
Infrared Fill Lights, White Flash LEDs |
Storage |
256 GB eMMC |
Memory (RAM) |
16 GB or 32 GB DDR4 (32GB only in MIRACO Pro) |
Scanner Weight |
750 g |
Battery Capacity |
5,000 mAh supporting up to 2-hour |
Tracking Methods |
Feature, Marker, Global Marker |
Connector Type |
USB Type-C |
Compatible Operating Systems |
Windows 10/11 (64-bit), macOS 11.0 or better |
Special Object Scanning |
Use Scanning Spray for Transparent, Dark, or Highly Reflective Objects |
Output File Formats |
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
Built in Chip Computing |
Depth Map Computing, 3D Scanning, Point Cloud Processing and Editing |
Technology |
Quad-camera Infrared Structured Light |
Fused Point Distance, up to |
0.05 mm |
Single Capture Area at Furthest Distance |
975 × 775 mm at 1000 mm |
Scanning Speed, up to |
15 fps |
Maximum Scan Volume |
4 × 4 × 4 m |
Screen |
6" 2K AMOLED Touch Screen |
Position Sensors |
9-axis IMU |
RGB Camera Resolution, up to |
48 Megapixels |
Dimensions (L × W × H) |
200 × 50 × 110 mm |
Ideal Applications
Sample Products
Research
.
3D Animation
.
Tooling and Moulding
.
