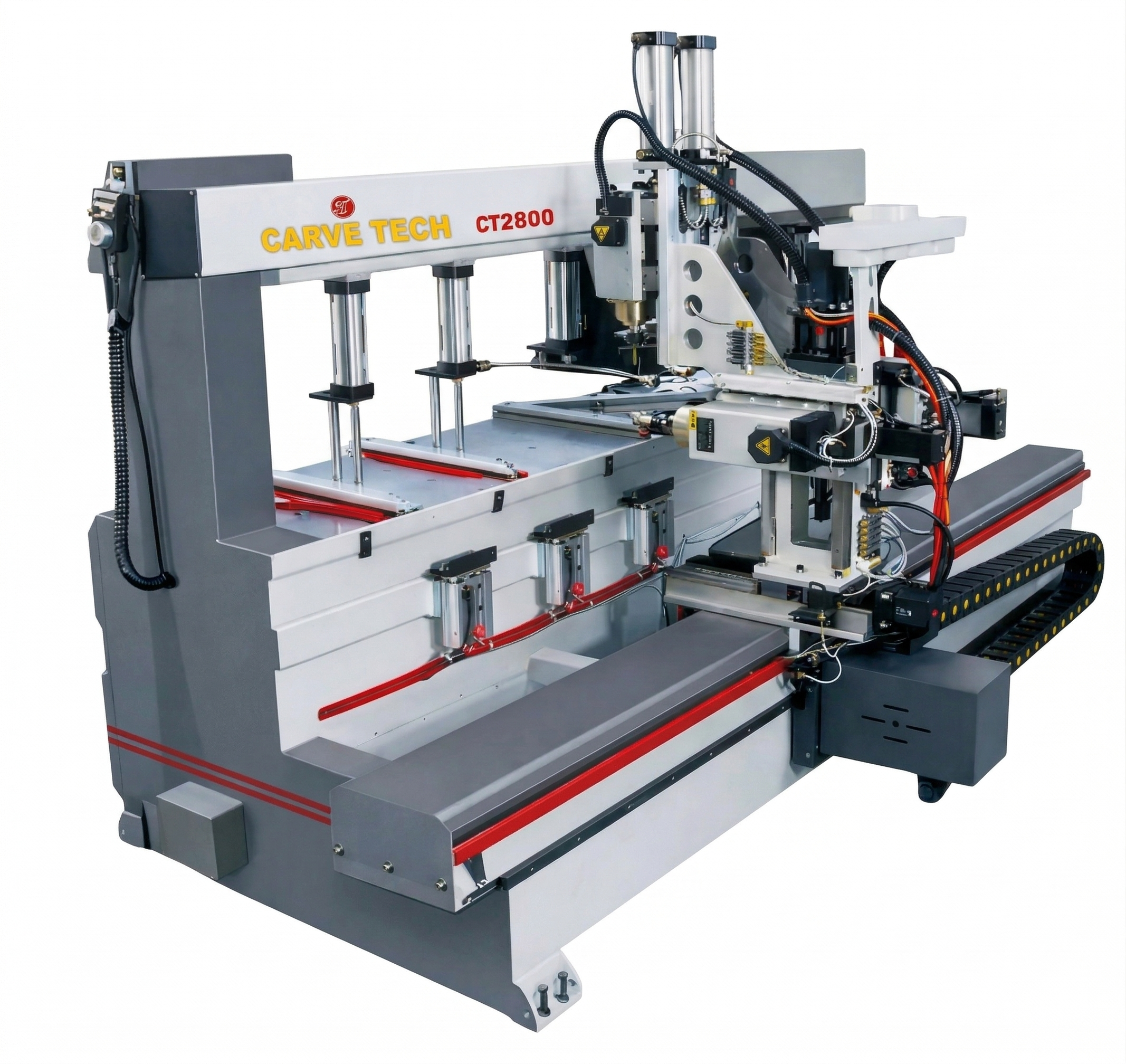

Tenon & Mortiser CT2800
CarveTech CT2800 is a CNC woodworking machine designed for producing a wide range of precise tenons, grooves, slots, holes, and joinery profiles. With multi-station operation and dedicated machining functions, it supports efficient production of complex wooden joints and components for furniture and woodworking applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Control System | CNC Control, 7" Touch Display, 1 Click Start |
| Machine Dimension | L: 3700 x W: 1350 x H: 1550 mm |
| Machine Total Power | 16.0KW |
| Left/Right Mechanical Stroke | 3100 mm |
| Up/Down Mechanical Stroke | 900 mm |
| Front/Rear Mechanical Travel | 260 mm |
| Working Pressure | 0.7 MPa |
| No. of Servo Axes | 3 |
| No. of Platform Workstations | 4 |
| No. of Working Motor Shafts | 4 |
| Power Requirement | AC 380 V, 50 Hz |
| Machine Weight | Approx. 1500 kg |
| Operations / Profiles | Square tenon; Half groove; Hinge hole; Round tenon; Through groove; Trademark hole; Long tenon; Water droplet groove; Door lock hole; Oblique tenon; Bed board groove; Side hole; 45° table edge tenon; Rectangle slot; Insert shoulder; Rounded water droplet tenon; Long slot; Copper sleeve; Bed board tenon; Elliptical slot; Front face machining; Zongzi corner; Dovetail; V-shaped mouth |
Ideal Applications
Furniture Joinery
Door & Window Components
Wooden Frames
Cabinet Manufacturing
Solid Wood Furniture
Traditional Wood Joinery
Custom Wooden Components
Architectural Woodwork
Complex Wood Joints
Mass Joinery Production

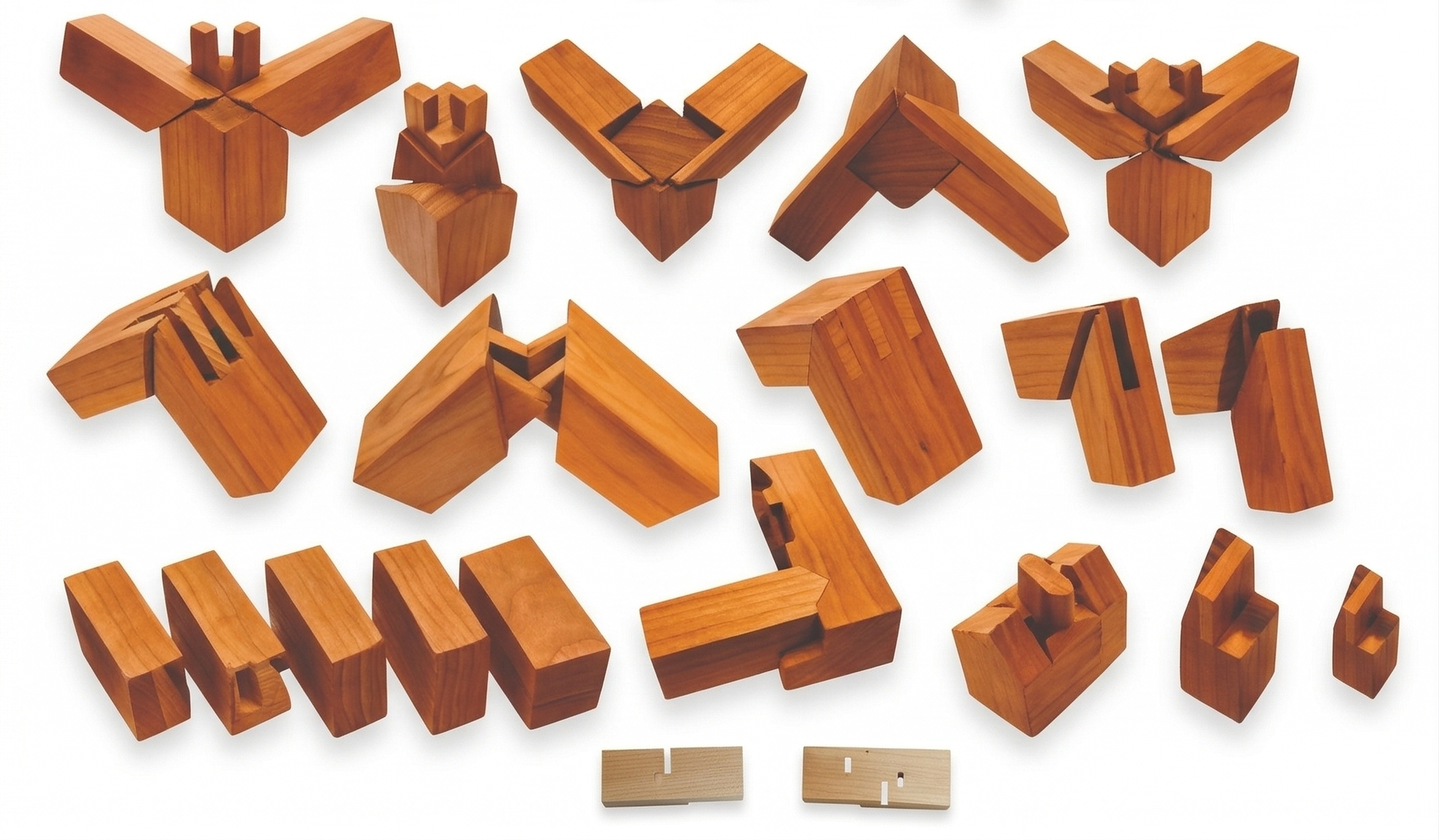

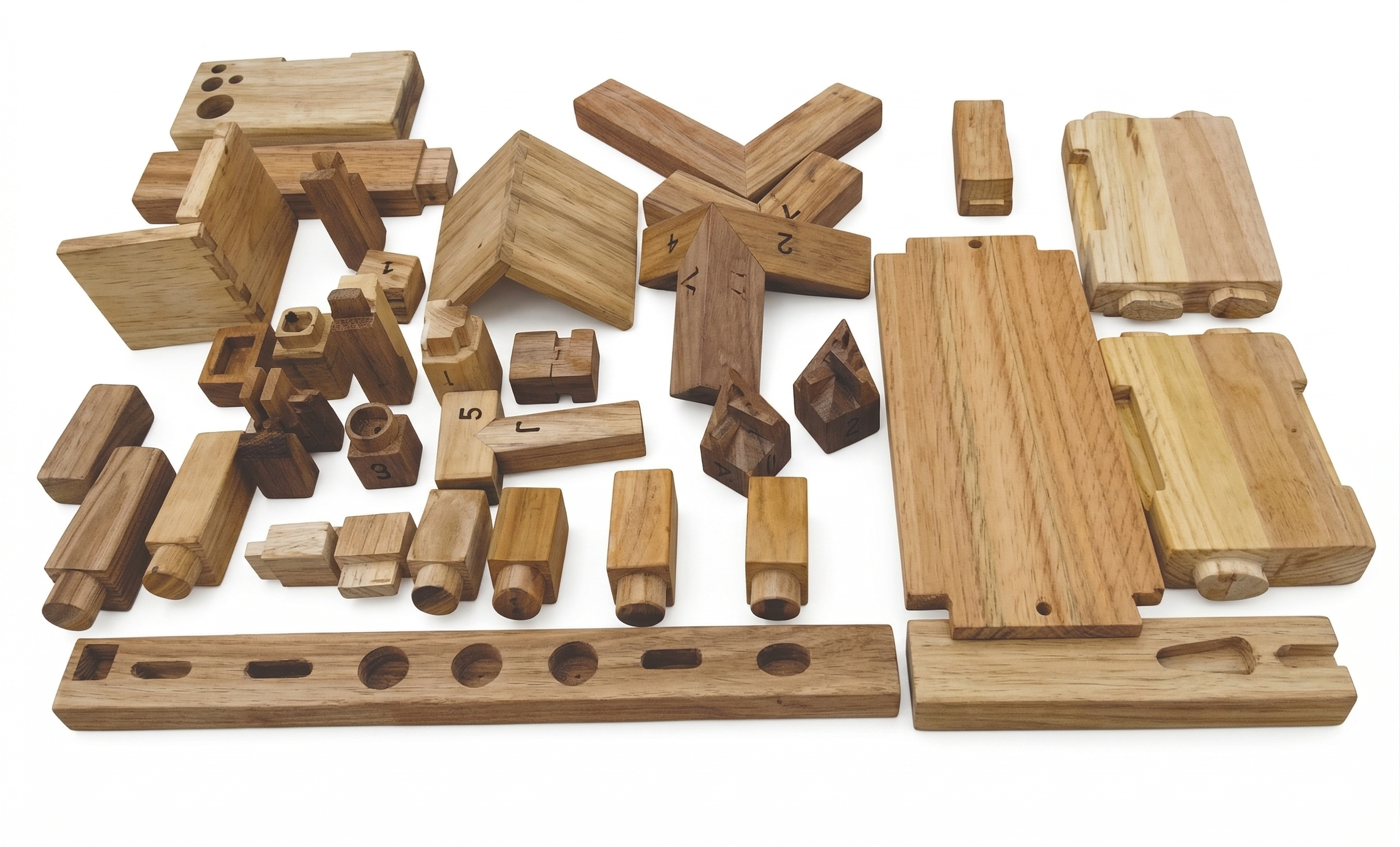

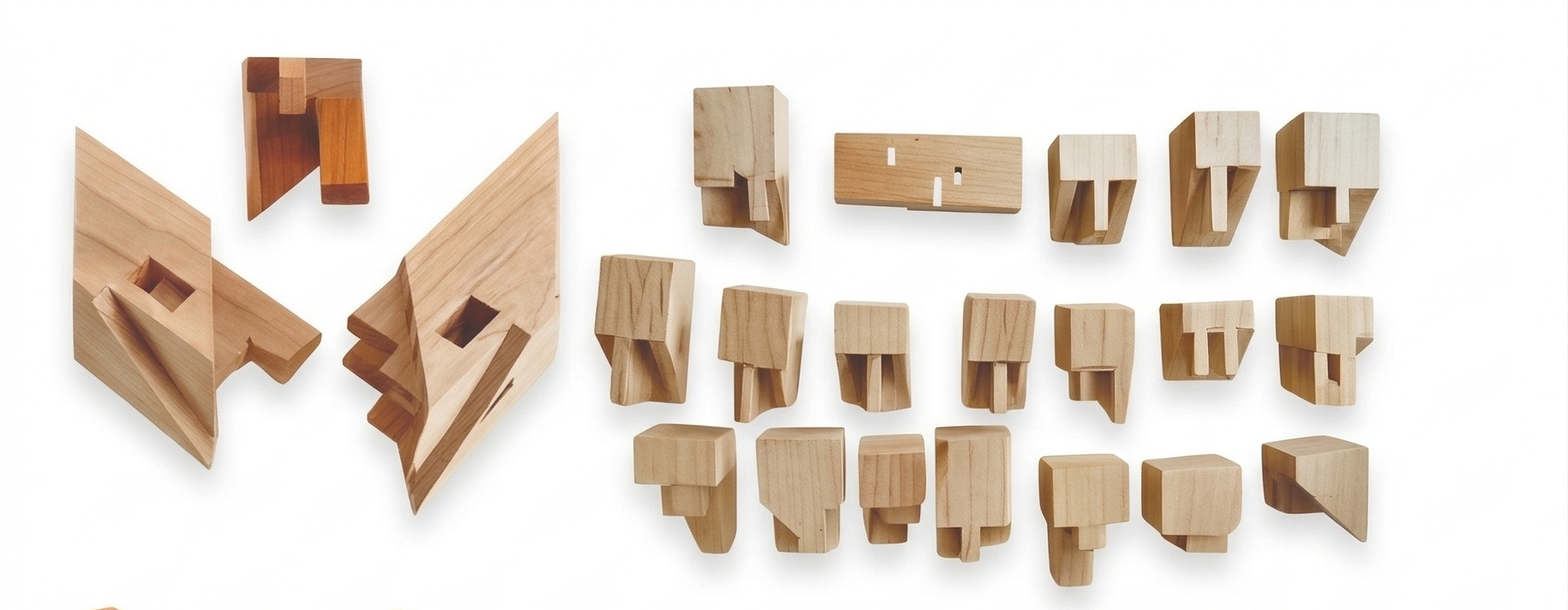

Sample Products
Tenon & Mortiser
.
Tenon & Mortiser
.
Tenon & Mortiser
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech CNC Tenon & Mortiser CT2800. Get in touch with our experts today.
