Band Saw Machine

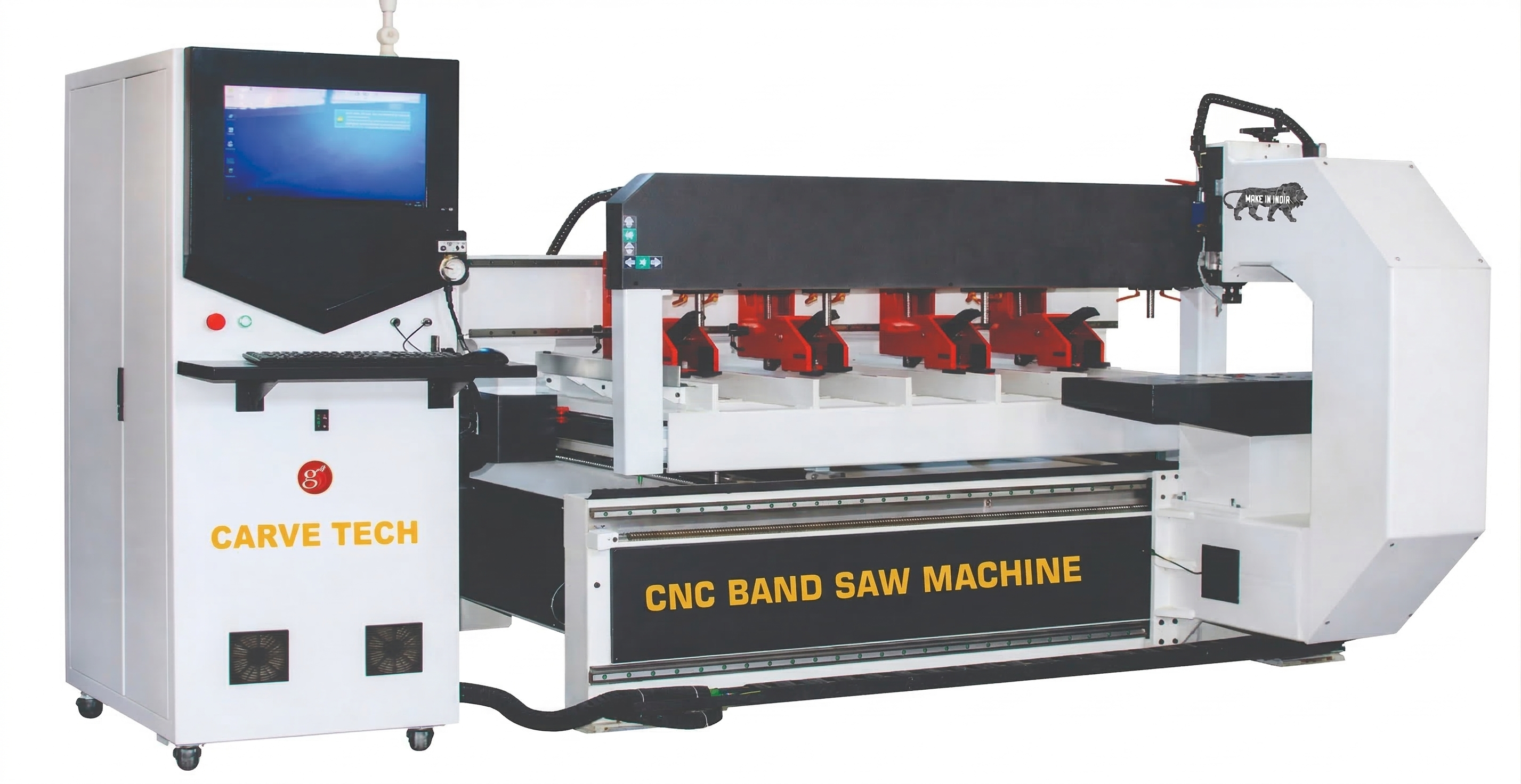

CarveTech CNC Band Saw Machine is designed for efficient cutting and shaping of large solid-wood components and complex profiles. With CNC-controlled 4-axis operation, multiple working-area options, high-speed cutting, and a heavy-duty rotary system, it enables consistent machining of intricate wooden forms and large workpieces
Technical Specifications
| Parameter | YZ1500 | YZ2000 | YZ2500 |
|---|---|---|---|
| Operating System | NK105 G3 4 Axis | NK105 G3 4 Axis | NK105 G3 4 Axis |
| Working Area (X, Y, Z) | 2100 × 2600 × 1800 mm | 2600 × 2600 × 1800 mm | 3100 × 2600 × 1800 mm |
| Cutting Thickness | 10–150 mm | 10–150 mm | 10–150 mm |
| Cutting Speed | 8000 mm/min | 8000 mm/min | 8000 mm/min |
| Linear Guideways (X, Y, Z) | Taiwan Linear Ball Bearing Profile Rails | Taiwan Linear Ball Bearing Profile Rails | Taiwan Linear Ball Bearing Profile Rails |
| Drive System | X, Y: Helical Rack and Pinion; Z: 32 mm Lead Screw | X, Y: Helical Rack and Pinion; Z: 32 mm Lead Screw | X, Y: Helical Rack and Pinion; Z: 32 mm Lead Screw |
| Drive Motor | Servo | Servo | Servo |
| Rotary System | Heavy Gear Box | Heavy Gear Box | Heavy Gear Box |
| Electrical Components | L&T, ABB, Schneider, Imported Flexible Cable | L&T, ABB, Schneider, Imported Flexible Cable | L&T, ABB, Schneider, Imported Flexible Cable |
| Spindle Power | 11.2 kW Air Cooled | 11.2 kW Air Cooled | 11.2 kW Air Cooled |
| Spindle Speed Range | 6000–24000 rpm | 6000–24000 rpm | 6000–24000 rpm |
| Power Requirement | 3-Phase, ≥ 15 kW | 3-Phase, ≥ 15 kW | 3-Phase, ≥ 15 kW |
| Lubrication System | Programming Oil Lubrication | Programming Oil Lubrication | Programming Oil Lubrication |
| Machine Weight | Approx. 2500 kg | Approx. 2500 kg | Approx. 2500 kg |

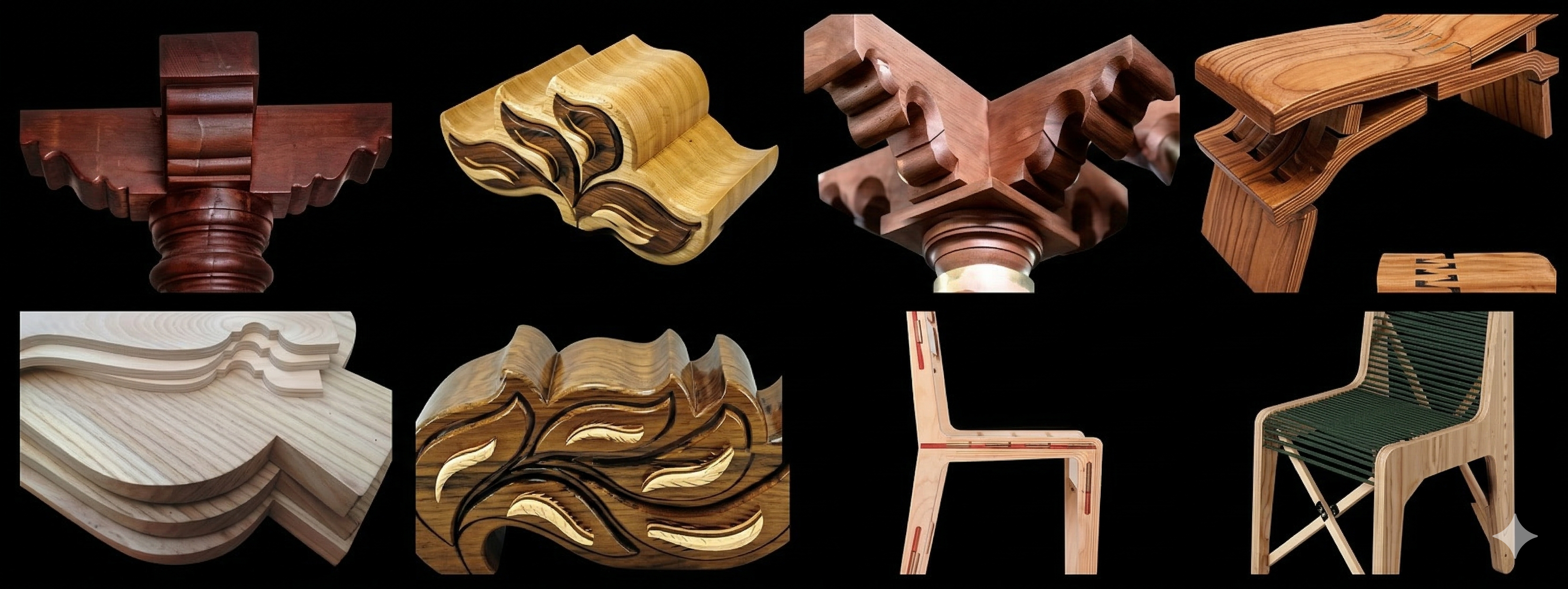

Ideal Applications
Furniture Components
Curved Furniture Parts
Decorative Wood Profiles
Chair Components
Table Components
Architectural Woodwork
Sculptural Woodwork
Large Solid-Wood Components
Custom Wood Designs
Complex Wooden Forms
Sample Products
Band Saw
Traditional smooth-finish wooden bowl, perfect for serving and display.
Band Saw
Multi-size nested bowl set for versatile kitchen and dining use.
Band Saw
Modern square-profile bowl with rounded corners for contemporary design.
