4-Axis CNC Router
4-Axis
4-Axis

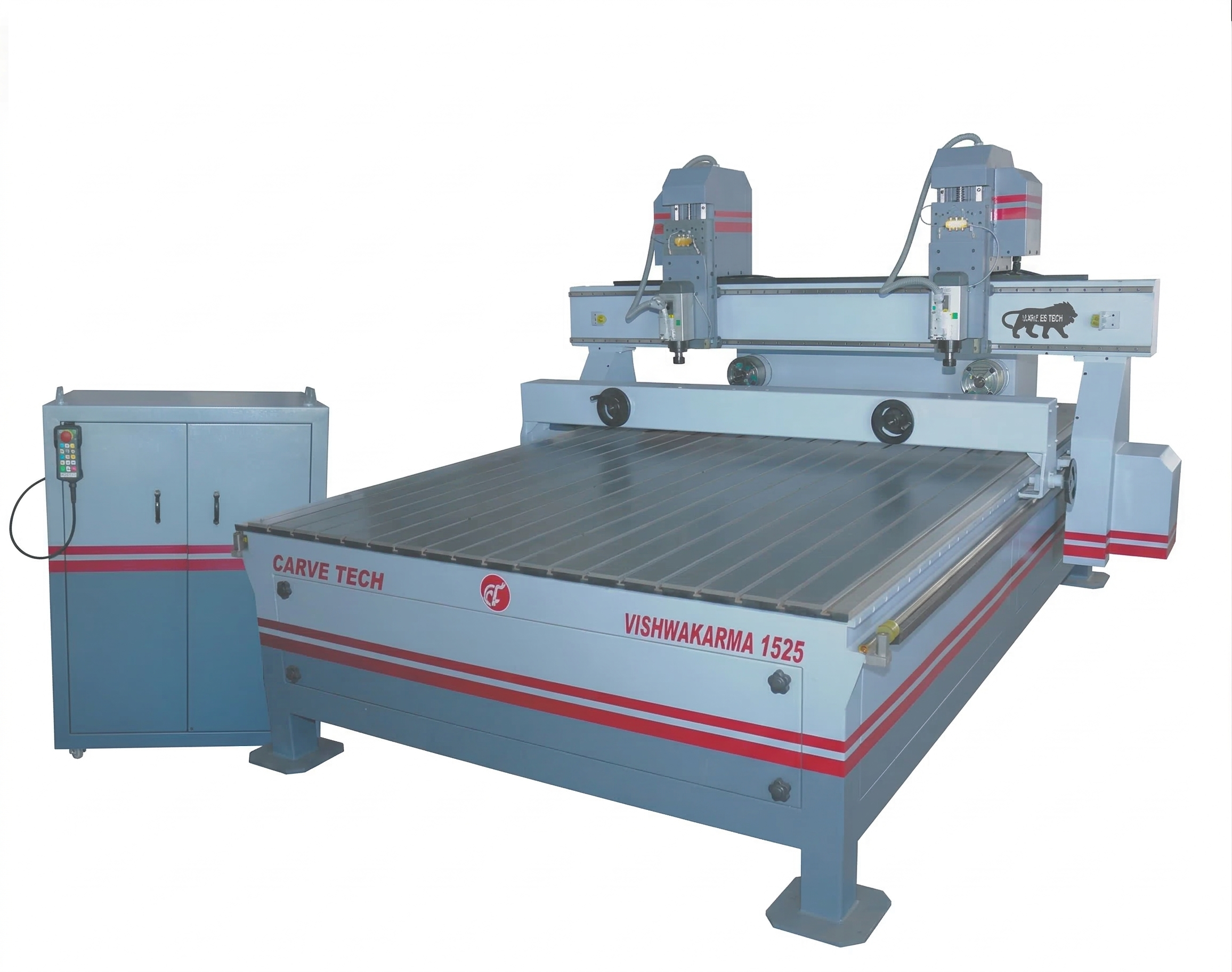

Vishwakarma 4/2 Spindle
The CarveTech 4-Axis Vishwakarma 4/2 Spindle is a multi-axis CNC router designed for efficient carving, profiling and machining of intricate wooden components. With 2- and 4-spindle configurations and continuous rotary machining capability, it is suited for both detailed carving and higher-volume production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating System | NK105 G3 With 4 Axis |
| Axis Configuration | 2/3/4 Axis |
| Working Area | X: 1500 x Y: 2450 x Z: 300 mm |
| A-Axis (Rotary) | 360° Continuous |
| Working Area Dia | 110 mm (220 mm Dia) |
| Max. Feeding Rate | 4-20 m/min |
| Positioning Resolution | 0.05 mm |
| Programming Command | G code*.u00*.mmg*.plt |
| Spindle Power & Type | 3 KW x(4) or (2) Water / Air Cooled |
| Spindle Speed Range | 6,000-24,000 rpm |
| Drive Motor | Stepper / Servo |
| Working Voltage & Frequency | AC 220 V / 380 V, 50Hz |
| Electrical Components | L&T, ABB, Schneider, Imported Flexible Cable |
| Lubrication System | Programmable Oil Lubrication |
Ideal Applications
Furniture Components
Decorative Wood Profiles

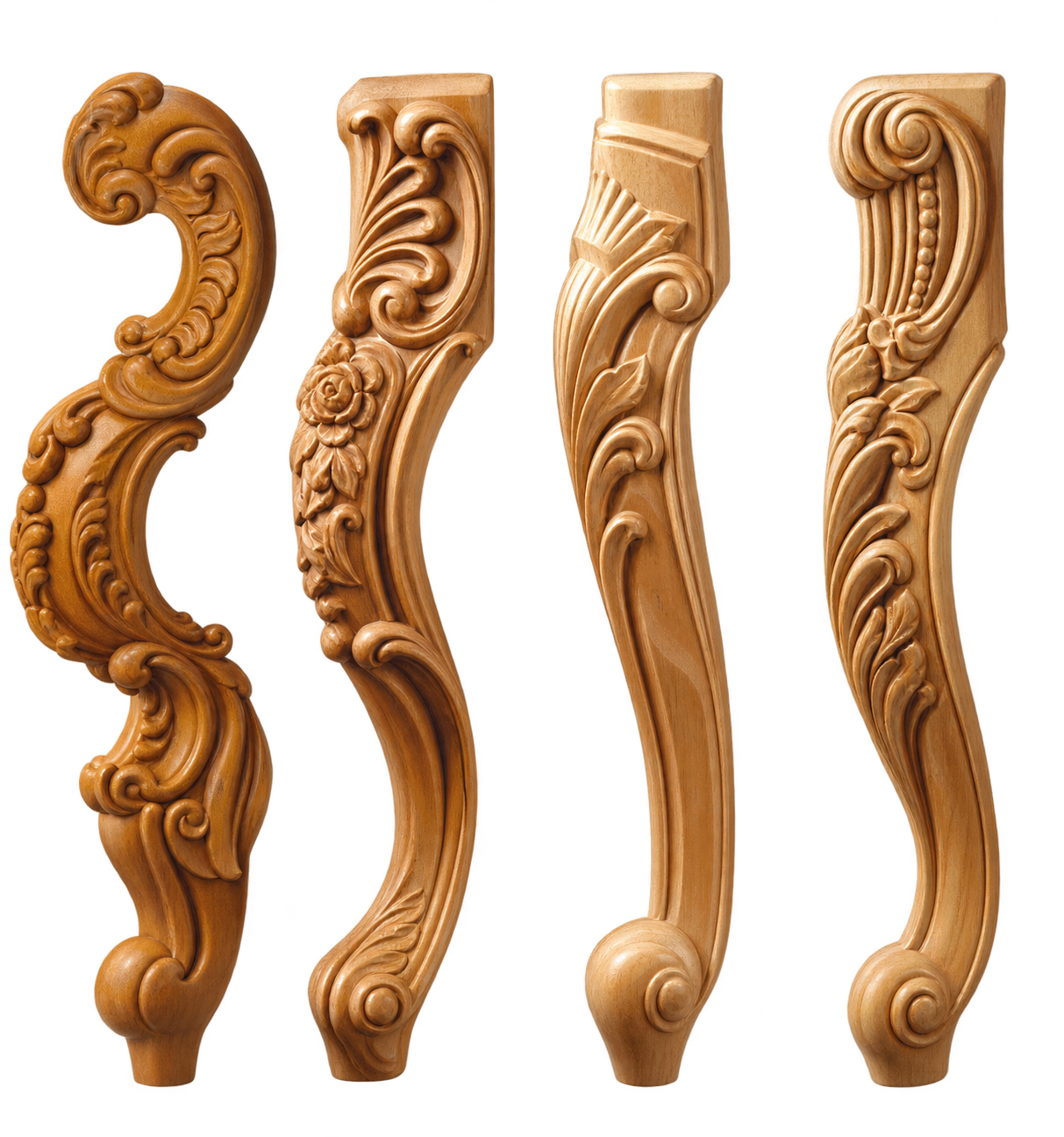

Carved Furniture Legs
Architectural Mouldings
Ornamental Woodwork
Door & Panel Components
Intricate Wood Carvings
Batch Production of Repeated Components
Sample Products
Vishwakarma Spindles
.
Vishwakarma Spindles
.
Vishwakarma Spindles
.
Made in India
ISO 9001:2015 Certified
32+ Years of Experience
2000+ Successful Installations
Pan India Service Network
Complete Technical Assistance
Ready to Elevate Your
Production?
Boost your productivity with CarveTech 4-Axis Vishwakarma 4/2 Spindle. Get in touch with our experts today.
