Left

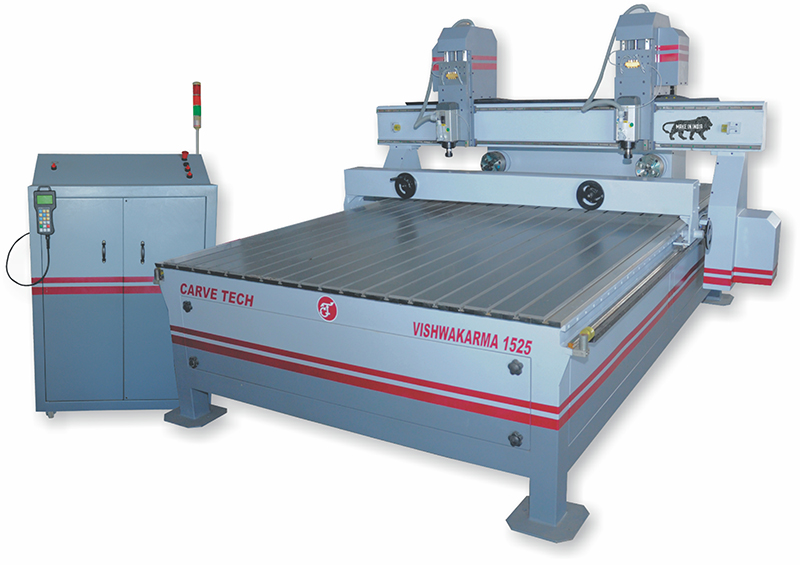

Right Carver 1525 S and 2030 S
The CarveTech LR Carver is a 3-axis CNC router 1525 S and 2030 S designed for two-job machining at the same time. With independent left and right machining capability, it improves productivity while maintaining consistent carving, cutting and engraving quality across large-format woodwork applications.
Technical Specifications
| Parameter | 1525 S | 2030 S |
|---|---|---|
Operating System |
NK105 G2 / RichAuto |
NK105 G2 / RichAuto |
Working Area |
1550 × 3000 mm |
2100 × 3500 mm |
Max. Working Area (X, Y, Z) |
X: 1500 × Y: 2500 × Z: 300 mm |
X: 2000 × Y: 3000 × Z: 300 mm |
Cutting Speed |
X, Y: 15000 mm/min; Z: 8000 mm/min |
X, Y: 15000 mm/min; Z: 8000 mm/min |
Max. Material Height |
300 mm |
300 mm |
Max. Width for Material |
1550 / 2 mm |
2100 / 2 mm |
Linear Guideways (XYZ) |
Taiwan linear ball bearing profile rails |
Taiwan linear ball bearing profile rails |
Drive System |
X, Y: Helical Rack and pinion; Moulding Gear Box; Z Lead screw |
X, Y: Helical Rack and pinion; Moulding Gear Box; Z Lead screw |
Drive Motor |
Servo / Stepper |
Servo / Stepper |
Electrical Components |
L&T, ABB, Schneider, Imported Flexible Cable |
L&T, ABB, Schneider, Imported Flexible Cable |
Spindle Power |
2.2 kW to 9.0 kW Air/Water Cooled x 2 |
2.2 kW to 9.0 kW Air/Water Cooled x 2 |
Spindle Speed Range |
6000–24000 rpm |
6000–24000 rpm |
Power Requirement |
Single / 3-Phase (≥ 4 kW) |
Single / 3-Phase (≥ 4 kW) |
Machine Weight |
Approx. 1200 kg |
Approx. 1700 kg |
Ideal Applications

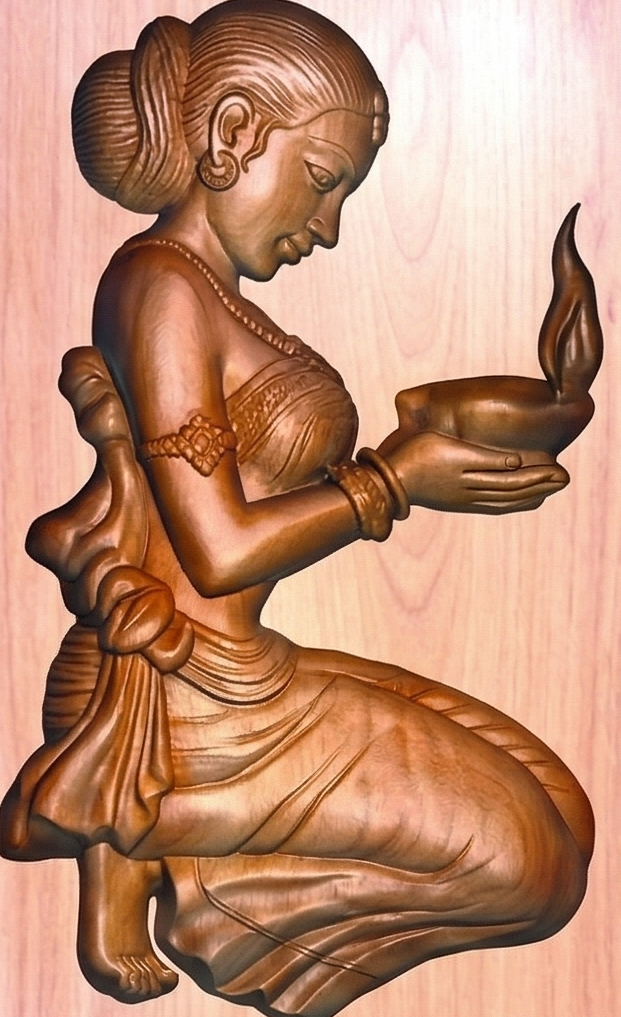

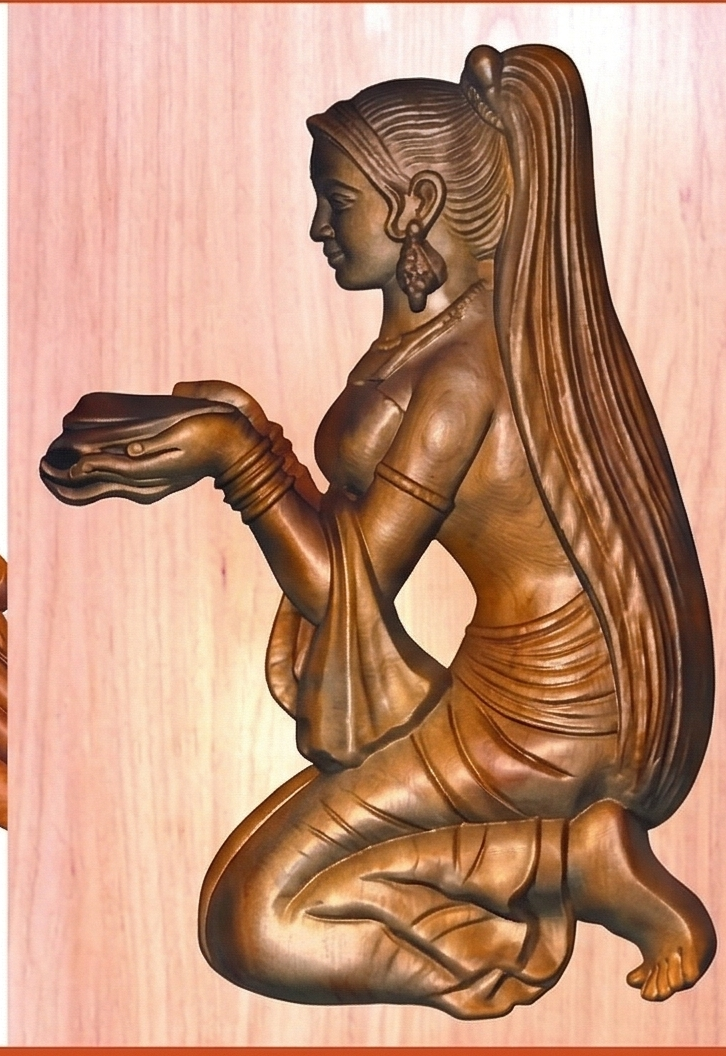

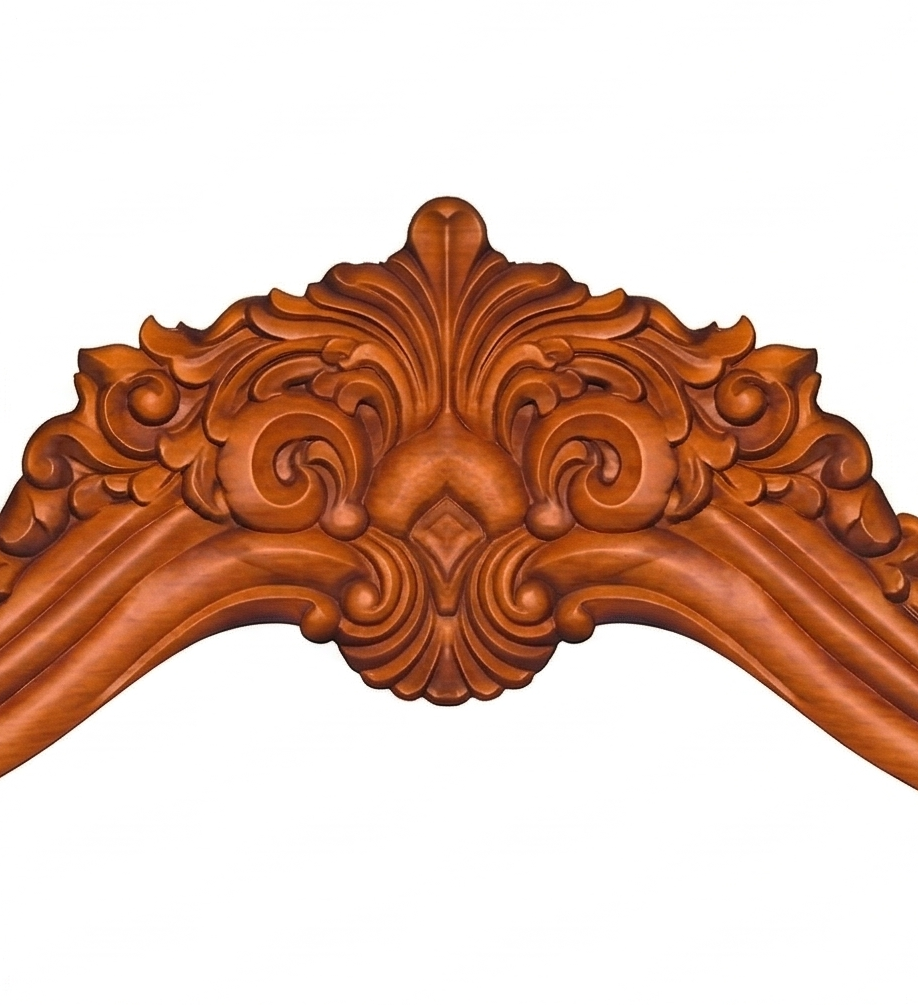

Sample Products
Architectural Woodwork
.
Furniture Components
.
Architectural Woodwork
.
